The KSZ9031RNXIA TR is a Gigabit Ethernet transceiver manufactured by Micrel (now Microchip Technology). It is designed to provide a physical layer interface for transmitting and receiving Ethernet packets over copper cable at speeds up to 1 Gigabit per second.

Applications

• Networking equipment: Used in switches, routers, and network interface cards (NICs).
• Embedded systems: Integrated into industrial computers, single-board computers, and other embedded devices requiring Ethernet connectivity.
• IP cameras: Provides network connectivity for surveillance cameras.
• Printers: Enables network printing functionality in printers and multi-function devices.
• Gaming consoles: Provides Gigabit Ethernet connectivity for online gaming.

Features

• Gigabit Ethernet: Supports 10/100/1000 Mbps data rates.
• RGMII/RMII/MII interface: Flexible interface options for connecting to Ethernet MAC controllers.
• Integrated PHY: Includes all necessary physical layer functions for Ethernet communication.
• Auto-negotiation: Automatically configures the link speed and duplex mode.
• Auto-MDI/MDIX: Automatically detects and corrects cable polarity.
• Low power consumption: Designed for energy-efficient operation.
• Wake-on-LAN (WoL): Supports remote wake-up functionality.
• IEEE 802.3 compliance: Complies with Ethernet standards.
• Advanced power management: Reduces power consumption in idle mode.

Benefits

• High-speed connectivity: Enables fast data transfer over Ethernet networks.
• Flexible interface options: Simplifies integration with various Ethernet MAC controllers.
• Reduced BOM cost: Integrated PHY reduces the need for external components.
• Easy to use: Auto-negotiation and auto-MDI/MDIX simplify setup and configuration.
• Low power consumption: Reduces energy consumption and heat dissipation.
• Improved system performance: Gigabit Ethernet connectivity enhances overall system performance.
• Reliable operation: Designed for robust and reliable Ethernet communication.

Additional Details

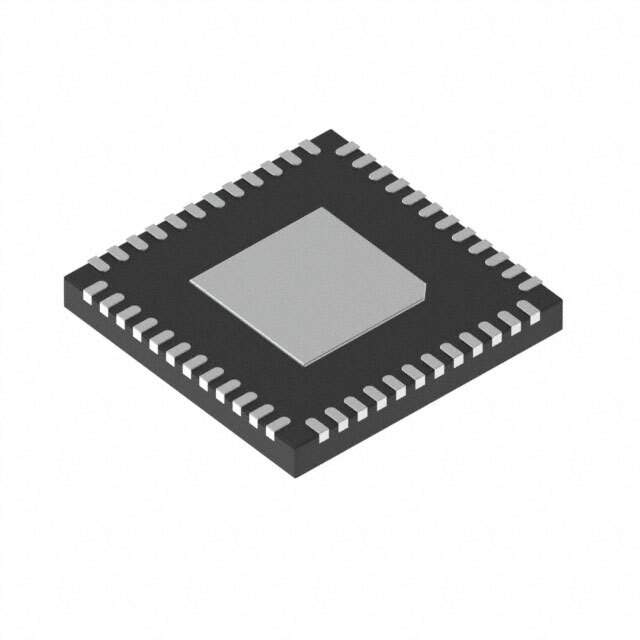

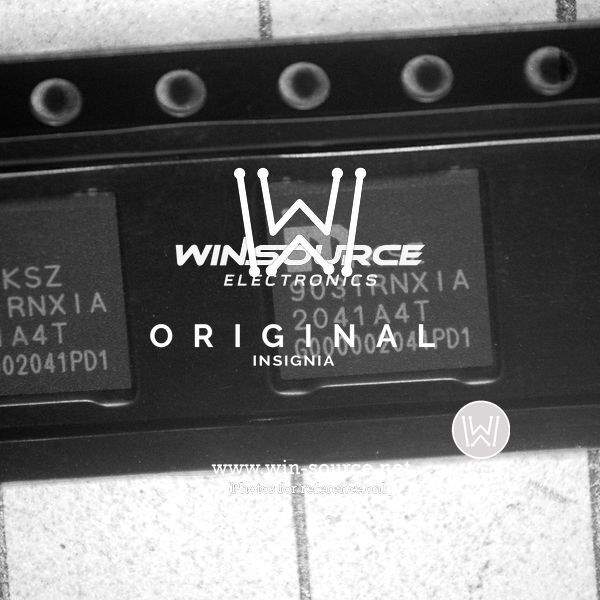

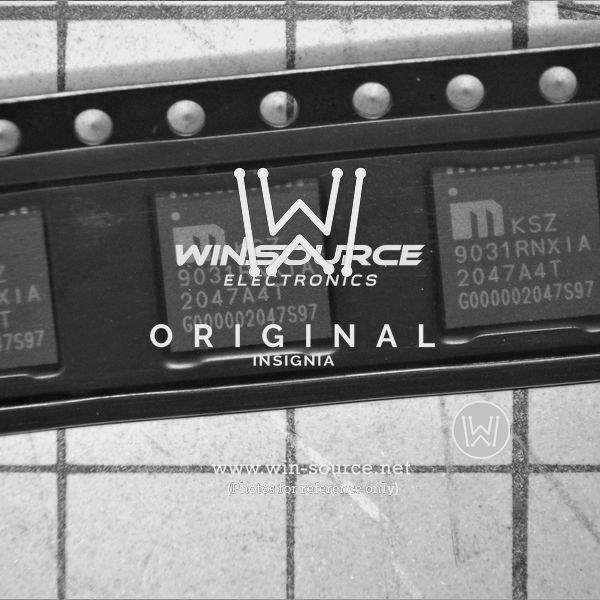

The KSZ9031RNXIA TR operates on a 3.3V power supply. The operating temperature range is typically specified for industrial or commercial applications. The package type is usually a QFN (Quad Flat No-leads) or similar, designed for surface mounting. It requires external magnetics for connecting to the Ethernet cable. The "TR" suffix usually indicates tape and reel packaging for automated assembly. This transceiver is commonly used in applications where reliable and high-speed Ethernet connectivity is essential.
