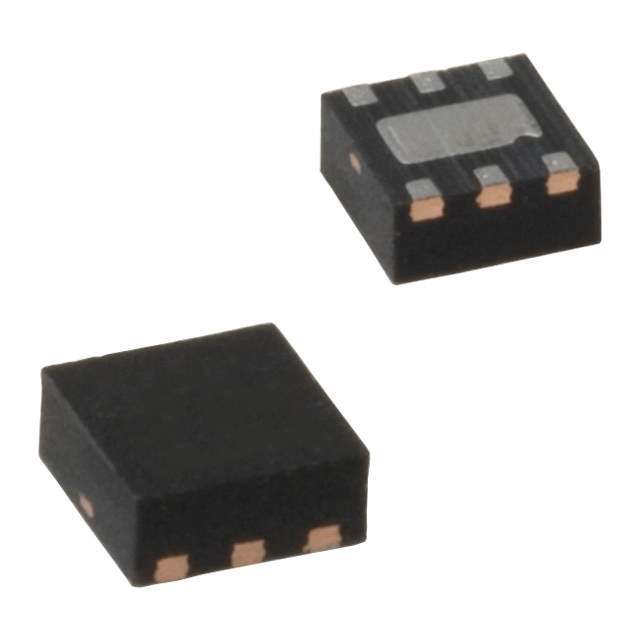

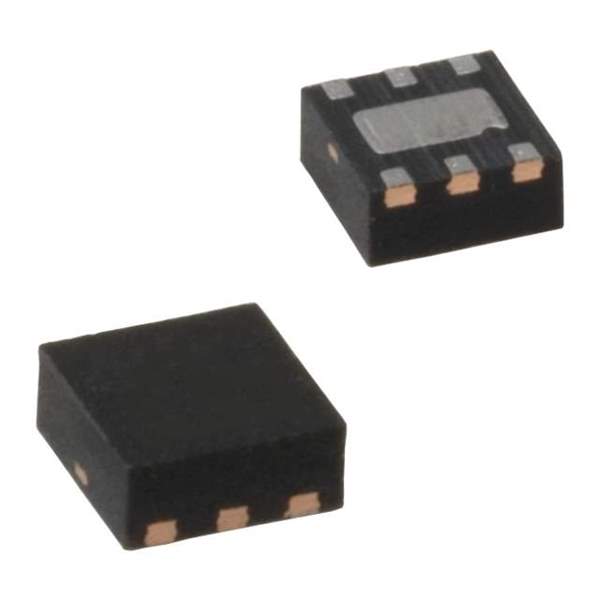

The MIC5309-1.8YMTTR is a highly integrated, low quiescent current LDO (Low Dropout) regulator from Micrel, now Microchip Technology. It's designed to provide a stable 1.8V output voltage from a higher input voltage. The regulator features a small footprint and is optimized for battery-powered applications where efficiency and space are critical.

Applications

• Battery-powered devices
• Portable electronics (smartphones, tablets)
• Wearable devices (smartwatches, fitness trackers)
• Wireless modules
• Handheld instruments

Features

• Fixed 1.8V output voltage
• Low dropout voltage
• Low quiescent current
• Stable with ceramic output capacitors
• Short-circuit protection
• Over-temperature protection
• Enable pin for shutdown
• Tiny package (TMLF)

Benefits

• Extended battery life: Low quiescent current minimizes power consumption when the device is idle.
• Stable output voltage: Provides a consistent and reliable voltage supply for sensitive electronic components.
• Protection against faults: Short-circuit and over-temperature protection enhance system reliability.
• Space-saving design: Tiny package allows for integration into compact devices.
• Easy to use: Stable with ceramic output capacitors simplifies circuit design.
• Controlled power consumption: Enable pin allows for complete shutdown of the regulator, further reducing power consumption.

Additional Details

The MIC5309-1.8YMTTR is typically used with small ceramic capacitors for input and output filtering. The enable pin can be controlled by a microcontroller or other logic device to turn the regulator on or off. The datasheet provides detailed information on the recommended input voltage range, output current capabilities, and thermal characteristics. Proper PCB layout is essential to minimize noise and ensure stable operation. The thermal resistance of the package should be considered to ensure that the regulator does not overheat under normal operating conditions.
