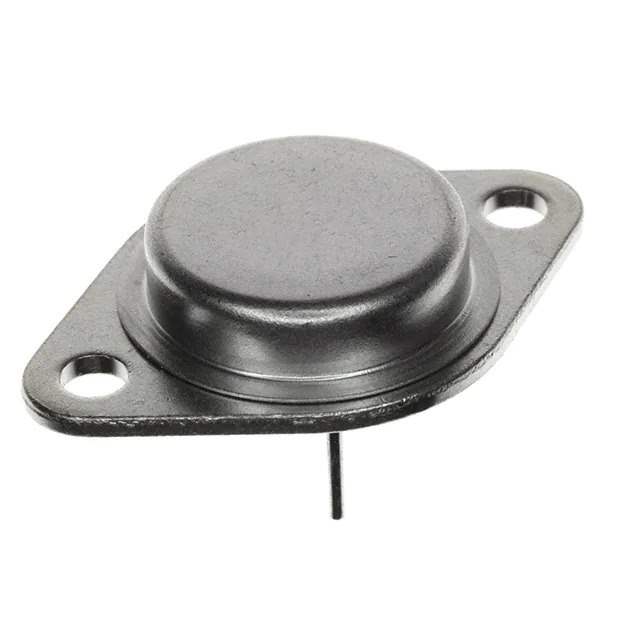

The 2N6353 is a robust power transistor manufactured by Microchip Technology, a leader in providing smart, connected, and secure embedded control solutions. This high-power bipolar junction transistor (BJT) is designed to handle significant voltage and current without failing, making it an ideal choice for a variety of demanding applications.

Key Features

• Type: NPN - The 2N6353 is an NPN transistor, which means it is best suited for amplifying or switching positive signals.
• Voltage & Current Ratings: It is capable of withstanding high voltages and currents, with a collector-emitter voltage (VCEO) rating of up to 80V and collector current (IC) rating of up to 16A.
• Power Dissipation: With a power dissipation of 115W, this device can handle considerable amounts of power, making it suitable for high-power circuits.
• Operating Junction Temperature: It can operate within a wide temperature range, with a junction temperature range of -65°C to +200°C, ensuring reliability in extreme conditions.

Applications

The 2N6353 is versatile and can be used in a range of applications, from simple to complex power systems. Its high-power handling capabilities make it ideal for:

• Linear and switching power supplies
• Motor controls
• Power converters and inverters
• Audio amplifiers
• High-power switching applications

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the 2N6353 is no exception. It is built to meet or exceed industry standards for performance and reliability. The device is also RoHS compliant, ensuring it meets environmental standards by restricting the use of certain hazardous substances in electrical and electronic equipment.

Conclusion

The 2N6353 from Microchip Technology is a testament to the company's dedication to providing high-quality components for the electronics industry. Whether for industrial, commercial, or consumer applications, this power transistor is engineered to deliver performance and reliability where it matters most.
