The IC12C508-04/SM from Microchip Technology is a high-performance, highly integrated 8-bit microcontroller designed to support a wide range of applications. This microcontroller is part of Microchip's renowned PIC family and offers a compact, cost-effective solution for embedded systems. It's ideal for applications in automotive, industrial control, consumer electronics, and more.

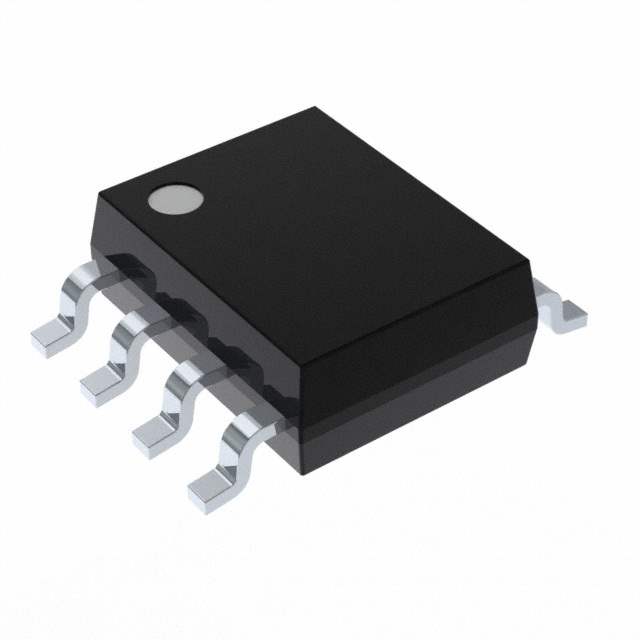

This particular model, the IC12C508-04/SM, comes in a small-outline package, making it suitable for space-constrained applications. It operates with a precision internal oscillator, eliminating the need for external timing components, and features 512 bytes of programmable read-only memory (PROM), providing ample space for application code.

Key Features:

• CPU: The IC12C508-04/SM is built around a powerful 8-bit CPU, capable of executing most instructions in just a few microseconds.
• Memory: It includes 512 bytes of PROM, 25 bytes of RAM, and 6 bytes of EEPROM data memory, offering a balanced mix of volatile and non-volatile storage options.
• I/O Ports: The microcontroller features 5 general-purpose I/O pins, which can be configured as inputs or outputs to interface with a variety of peripherals.
• Timer: An onboard 8-bit timer with an 8-bit prescaler provides timing and counting capabilities, useful for creating timed events or measuring intervals.
• Operating Voltage: It supports an operating voltage range from 2.5V to 5.5V, giving designers flexibility in power supply design.
• Speed: The device operates at a speed of 4 MHz, delivering performance that can meet the demands of many real-time applications.
• Packaging: The surface-mount (SM) package allows for efficient use of PCB space and is compatible with automated assembly processes.

The IC12C508-04/SM also includes features such as power-saving sleep mode, watchdog timer, and brown-out reset, which enhance the reliability and longevity of the end application. With its robust instruction set and versatile peripheral integration, this microcontroller is an excellent choice for designers looking for a small yet powerful component to drive their innovative projects.
