Microchip Technology's MCP1703AT-4002E/MB Low Dropout Voltage Regulator

The MCP1703AT-4002E/MB is a highly reliable, low dropout voltage regulator from the renowned manufacturer Microchip Technology. This efficient power management integrated circuit ensures a stable voltage supply, making it an ideal choice for battery-powered devices, microcontroller power supplies, and other electronic applications where energy efficiency is paramount.

Key Features:

• Output Voltage: The device provides a fixed output voltage of 4.0V, suitable for a variety of low-voltage electronics.
• High Current Capability: With an output current of up to 250 mA, it can power a wide range of components without the need for an additional heat sink under normal conditions.
• Low Dropout Voltage: The MCP1703AT-4002E/MB boasts a low dropout voltage, typically just 178 mV at 250 mA, which means it can maintain a consistent output even when the supply voltage is close to the output voltage.
• Extended Input Voltage Range: It operates over a broad input voltage range from 2.7V to 16V, allowing for flexibility in various power supply designs.
• Low Quiescent Current: The quiescent current is as low as 2 µA, which significantly increases battery life in portable applications.
• Stable with Ceramic Output Capacitors: The regulator is stable with ceramic output capacitors that have low equivalent series resistance (ESR), enhancing the reliability of the overall system.
• Thermal Overload Protection: The device comes with built-in thermal overload protection to safeguard against excessive power dissipation.
• Short-Circuit Protection: It also features short-circuit protection to prevent damage from output short conditions.

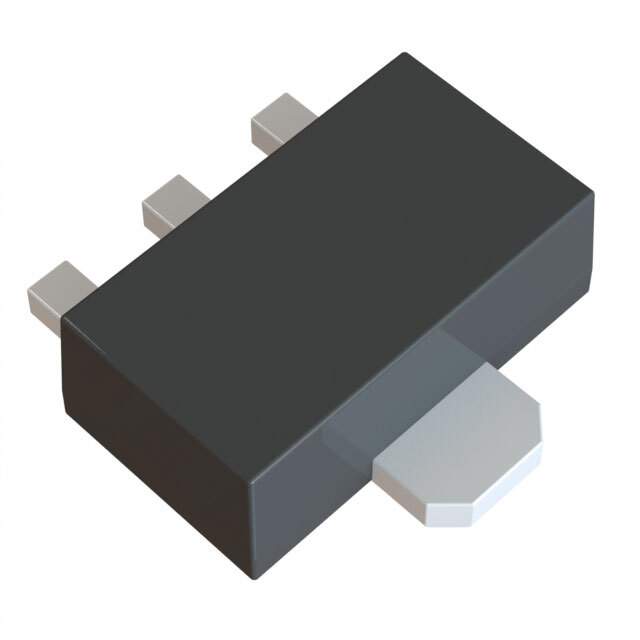

• Package: The MCP1703AT-4002E/MB is available in a small SOT-89 package, which is ideal for space-constrained applications.

Applications:

The MCP1703AT-4002E/MB is versatile and can be used in various applications, including:

• Portable electronic devices
• Battery-powered equipment
• Microcontroller power supplies
• Power supplies for sensors and analog circuits
• Consumer electronics

With its combination of high efficiency, low quiescent current, and robust protection features, the MCP1703AT-4002E/MB from Microchip Technology is a top-tier choice for designers looking for a reliable voltage regulator solution.
