Microchip Technology's MCP1722-3310H/Q8B - Low-Dropout Voltage Regulator

The MCP1722-3310H/Q8B from Microchip Technology is a highly reliable, low-dropout voltage regulator designed to maintain a stable output voltage even when the input voltage is very close to the output voltage. This component is especially suitable for battery-operated devices, where energy efficiency is paramount, and for applications where space is at a premium due to its small package footprint.

Key Features:

• Output Voltage: The device provides a fixed output voltage of 3.3V, which is ideal for powering 3.3V logic devices and microcontrollers.
• High Current Output: It can deliver up to 250 mA of current, making it capable of supplying sufficient power for most low-power applications.
• Low Dropout Voltage: The MCP1722-3310H/Q8B boasts a low dropout voltage, ensuring efficient operation even when the supply voltage is only slightly higher than the output voltage.
• Stable Operation: With its built-in voltage reference and error amplifier, the regulator guarantees a stable output without the need for external components, simplifying design and reducing board space.
• Thermal Protection: It includes an overtemperature protection feature that shuts down the regulator to prevent damage from overheating.
• Short-Circuit Protection: The device also offers short-circuit protection, enhancing the safety and reliability of the application it's used in.
• Low Quiescent Current: The MCP1722-3310H/Q8B has a low quiescent current which helps to maximize battery life in portable applications.

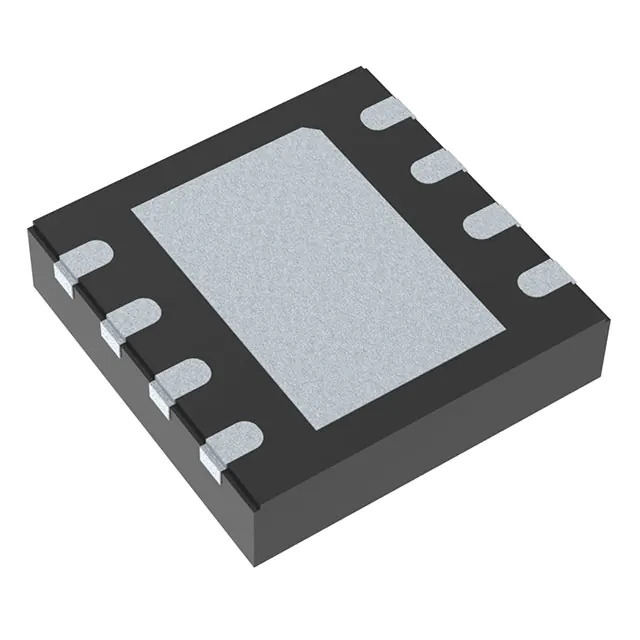

• Package: This voltage regulator comes in a 3x3 mm DFN package, which is not only space-efficient but also offers excellent thermal performance.

Applications:

The MCP1722-3310H/Q8B is versatile and can be used in a variety of applications, including:

• Battery-powered devices
• Portable electronic equipment
• Microcontroller power supplies
• Wireless communication devices
• Peripheral power supplies

With its combination of low dropout performance, high current output, and compact package, the MCP1722-3310H/Q8B is an excellent choice for designers looking to optimize power management in their next project.
