Microchip Technology's MCP2210T-I/MQ: A Versatile USB to SPI Bridge

The MCP2210T-I/MQ is a highly integrated USB-to-SPI master converter developed by Microchip Technology. This innovative device allows users to add SPI communication capabilities to any system with a USB host interface. The MCP2210T-I/MQ serves as a simple and cost-effective bridge between a USB port and SPI devices, making it an ideal choice for a wide range of applications in various industries.

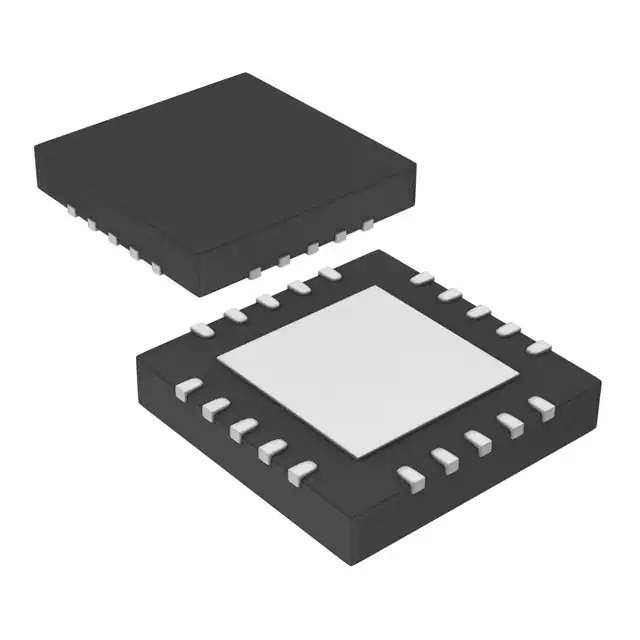

The product comes in a compact 20-pin VQFN package, designed to occupy minimal space on a PCB. It operates over an industrial temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments. With a USB 2.0 full-speed interface and a highly configurable SPI bus with speeds up to 12 Mbps, the MCP2210T-I/MQ provides a flexible and efficient solution for system designers.

One of the key features of the MCP2210T-I/MQ is its ability to support up to nine general-purpose input/output (GPIO) pins. These pins can be individually configured by the user, allowing for additional flexibility in interfacing with various peripherals and sensors. Furthermore, the device includes an integrated 256-byte user EEPROM, which can be used to store configuration settings or small amounts of data.

The MCP2210T-I/MQ also comes with a comprehensive set of software support tools. Microchip provides a dedicated software utility for configuring the device, as well as a Windows® driver and DLLs for developing custom applications. This ensures that integrating the MCP2210T-I/MQ into a system is as straightforward as possible, reducing development time and accelerating time-to-market for products that require SPI communication.

In summary, the MCP2210T-I/MQ from Microchip Technology is a versatile and reliable USB to SPI master converter that provides a simple interface solution for USB connectivity to SPI-based devices. Its robust feature set, industrial temperature range, and comprehensive software support make it an excellent choice for designers looking to enhance their systems with USB and SPI communication capabilities.
