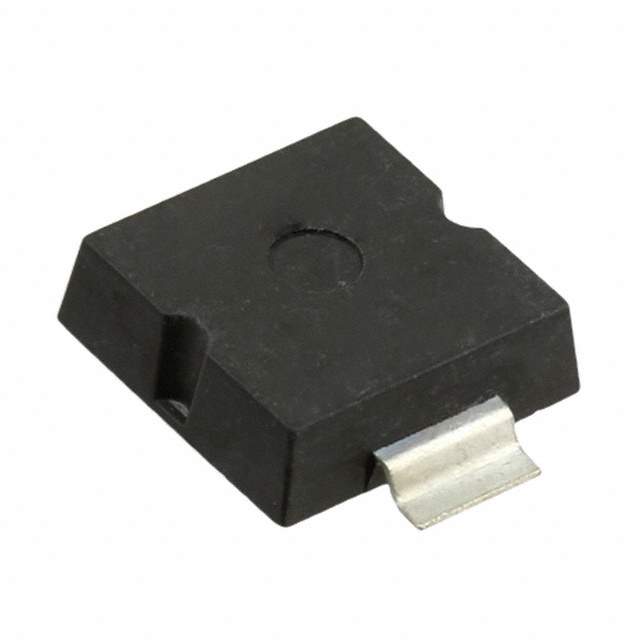

The MPLAD15KP120CA from Microchip Technology is a high-quality Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This robust component is part of Microchip's extensive range of circuit protection devices, engineered to ensure the reliability and longevity of your electronic systems.

Key Features

• High Surge Protection: The device can handle surge currents up to 15kW at 10/1000μs waveform, making it an ideal choice for safeguarding against severe voltage spikes.
• Bi-directional Clamping: The MPLAD15KP120CA offers bi-directional clamping which provides symmetrical protection for AC signals or electrical lines where the polarity reverses.
• Wide Operating Voltage Range: With a standoff voltage of 120V, it is suitable for a variety of applications that require a higher working voltage level.
• Fast Response Time: The device reacts in picoseconds to overvoltage events, ensuring rapid protection for sensitive circuits.
• Low Leakage Current: It has a low idle current which helps to minimize power loss and improve energy efficiency when the device is in standby mode.
• Robust Construction: The MPLAD15KP120CA is housed in a molded plastic over glass passivated junction, providing a rugged and durable shield against environmental factors.

Applications

The MPLAD15KP120CA is versatile and can be used in a wide range of applications, including:

• Power supply protection
• Industrial systems
• Telecommunications equipment
• Networking devices
• Automotive electronics
• Aerospace and avionics systems

Standards and Certifications

This TVS diode is compliant with industry standards, ensuring its reliability and performance across various conditions. It is RoHS compliant, and its performance is validated under high-surge environments, making it a trustworthy component for critical applications.

With the MPLAD15KP120CA, Microchip Technology continues to demonstrate its commitment to providing top-tier circuit protection solutions that meet the demanding requirements of modern electronic systems.
