Microchip Technology's PIC16LF1709-I/P Microcontroller

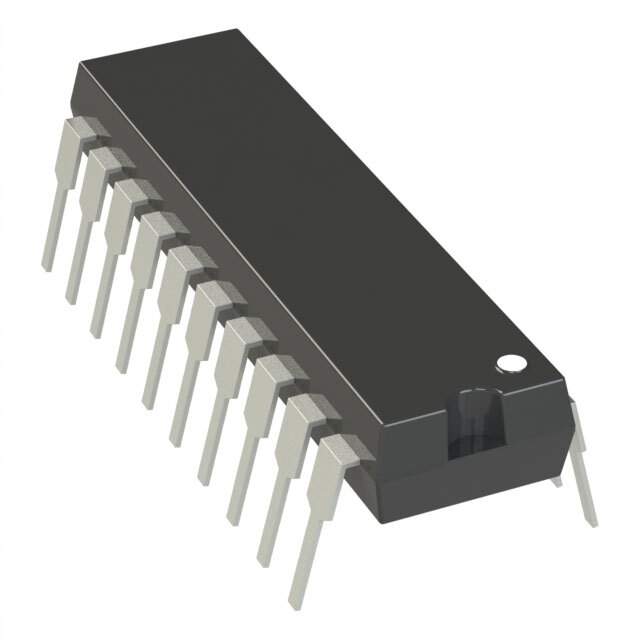

The PIC16LF1709-I/P is a versatile and powerful 8-bit microcontroller from Microchip Technology, designed to cater to a wide array of applications ranging from consumer electronics to industrial automation systems. This particular model comes in a PDIP (Plastic Dual In-line Package) with 20 pins, ensuring ease of integration into through-hole PCB designs.

Core Features

• CPU: The device is built around a high-performance RISC CPU with a 14-bit instruction set, optimized for power efficiency and speed, which is essential for responsive and low-power applications.
• Memory: It includes 14 KB of flash memory for program storage, which is robust and reliable over a wide range of temperatures and operating conditions. Additionally, it is complemented by 512 bytes of EEPROM and 1 KB of SRAM for data storage.
• I/O Pins: The microcontroller provides 18 versatile I/O pins that support various functions, including interrupt-on-change, and analog-to-digital conversion, allowing for flexible interfacing with peripherals and sensors.
• Analog Features: Equipped with an integrated 10-bit ADC with up to 17 channels, the PIC16LF1709-I/P offers precise analog signal measurement capabilities, which is ideal for sensor interfacing and data acquisition tasks.
• Communication Peripherals: It supports multiple communication protocols including I2C, SPI, and EUSART, which enable easy data exchange with other microcontrollers, computers, and network modules.
• Operating Voltage: The microcontroller operates at a low voltage range of 1.8V to 3.6V, which is suitable for battery-operated and portable devices.
• Temperature Range: The device is specified for an extended temperature range from -40°C to +125°C, ensuring reliable operation under extreme conditions.

Integrated Features for Enhanced Functionality

The PIC16LF1709-I/P also includes additional integrated features such as four flexible timers, a watchdog timer for system reliability, a 10-bit PWM for accurate control applications, and a Complementary Waveform Generator (CWG) that simplifies complex waveform generation. These integrated peripherals reduce the need for additional components, saving space and cost in system design.

With its extensive feature set and robust design, the PIC16LF1709-I/P from Microchip Technology is an excellent choice for designers looking for a high-quality, low-power microcontroller for their next project.
