The UCS1002-1 is a versatile and efficient USB port power controller from the renowned Microchip Technology, designed to enable a new generation of smarter and more energy-conscious devices. This innovative component is ideal for a wide range of applications, including desktop and portable computing devices, docking stations, monitors, and other peripherals requiring controlled USB power delivery.

Key Features

• Programmable Current Limiting: The UCS1002-1 offers precise control over the power supplied to USB devices, with programmable current limits to protect against overcurrent conditions.
• Dynamic Power Management: It supports dynamic power management, allowing for the allocation of power based on device requirements, which helps to maximize power efficiency and reliability.
• Charging Downstream Port (CDP) Support: This feature enables the port to supply higher current, facilitating faster charging times for compliant devices.
• Integrated Charge Emulation Circuits: The UCS1002-1 includes built-in charge emulation for Apple, SE1, and China YD/T 1591-2009 compliant devices, ensuring broad compatibility with a wide range of consumer electronics.

Advanced Protection Mechanisms

With its robust suite of protection features, the UCS1002-1 ensures safe operation under various conditions. These include over-temperature protection, short-circuit protection, and under-voltage lockout, which collectively safeguard both the power controller and the connected devices.

Customization and Flexibility

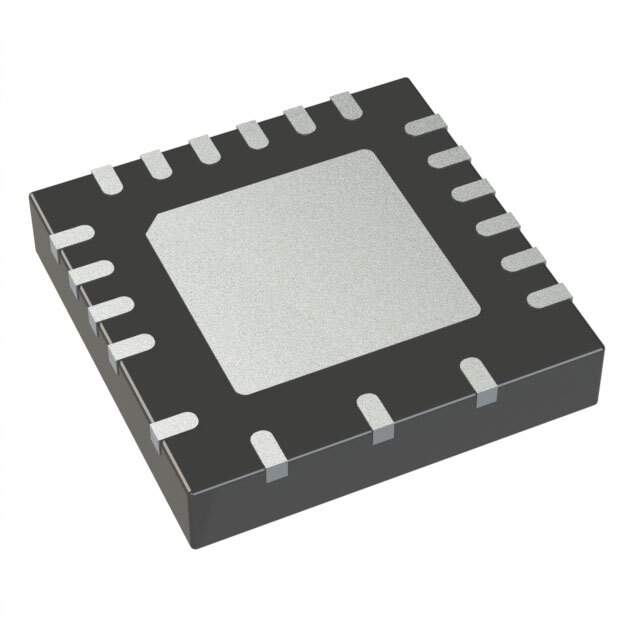

The UCS1002-1 is highly customizable through its I²C-compatible interface, which allows for easy programming of operating parameters and provides flexibility for system designers to tailor the power controller to specific application needs. Additionally, the UCS1002-1 is available in a compact QFN package, making it suitable for space-constrained applications.

Applications

The versatility of the UCS1002-1 extends to a multitude of applications, making it an excellent choice for:

• Desktop and Laptop Computers
• USB Hubs and Docking Stations
• Monitors with USB Ports
• Multi-Port Charging Stations
• Any USB-Enabled Device Requiring Controlled Power Delivery

With the UCS1002-1, Microchip Technology continues to pave the way for innovative power management solutions that cater to the evolving needs of modern electronics.
