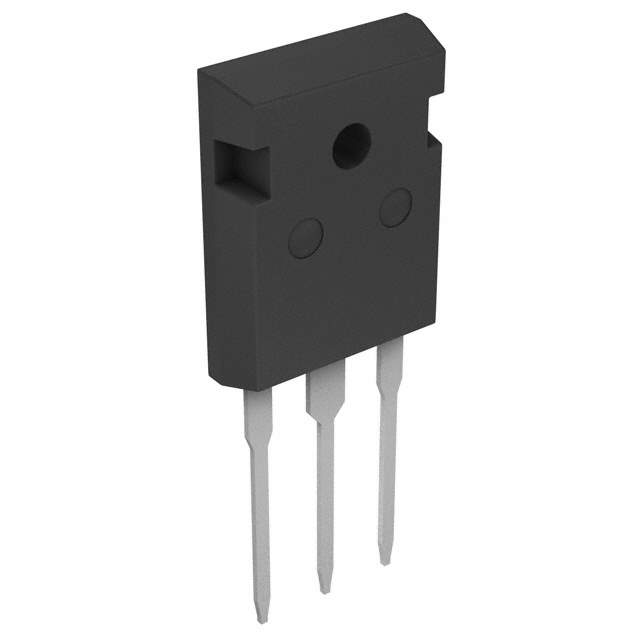

APT13F120B Real Image
Same model may have multiple batches, images only for reference.

APT13F120B

Part No APT13F120B
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel FREDFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 1200V
Current - Continuous Drain (Id) @ 25°C 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 5V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 145nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 4765pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 625W (Tc)
Rds On (Maximum) @ Id, Vgs 1.4 Ohm @ 7A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-247 [B]
Package TO-247-3
Win Source Part Number 1146618-APT13F120B
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APT13F120B
Introduction Date September 10, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian APT13F120B CAD Model

Description

The Microsemi Corporation is a high-quality electronic component that is designed to provide efficient and reliable performance.

  • Win Source Part Number: 1146618-APT13F120B
  • Component Type: MOSFET
  • Current - Continuous Drain (Id) @ 25°C: 14A (Tc)
  • Technology: MOSFET
  • Family Name: APT13F120B
  • Supply and Demand Status: Limited
