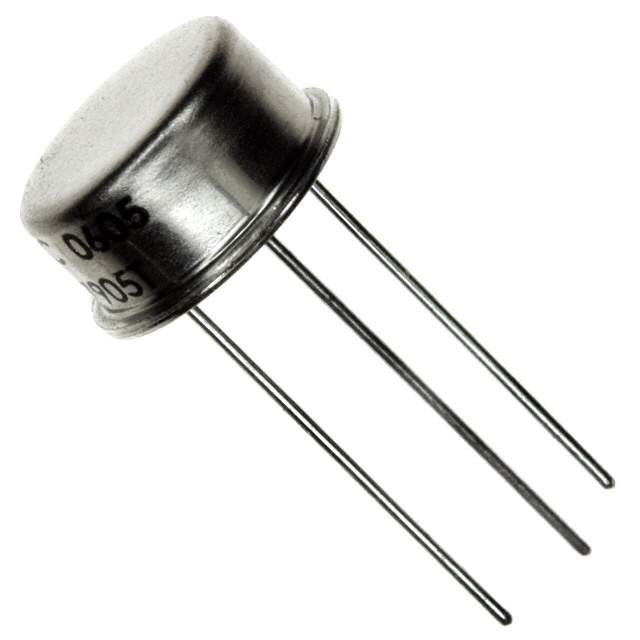

SG7815T-JAN Real Image
Same model may have multiple batches, images only for reference.

SG7815T-JAN

Part No SG7815T-JAN
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 15V 0.5A TO39
Datasheet
SG7815T-JAN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Packaging Tray
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 15V
Dropout Voltage-Max 2.5V @ 500mA
Output Current 500mA
Operating Supply Current 7mA
PSRR 60dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 15V
Voltage - Dropout (Typical) 2V @ 500mA
Mounting Through Hole
Case / Package TO-39
Win Source Part Number 145310-SG7815T-JAN
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian SG7815T-JAN CAD Model

Description

The supply and demand status is limited.

  • Component: Win source part number 145310-SG7815T-JAN
  • Type: Integrated circuit with a positive fixed regulator topology
  • Output: Fixed output type of 15V
  • Nominal Output Voltage: 15V
  • Maximum Input Voltage: 35V
  • Temperature Range: -55°C to 125°C
  • Dropout Voltage: 2V @ 500mA
