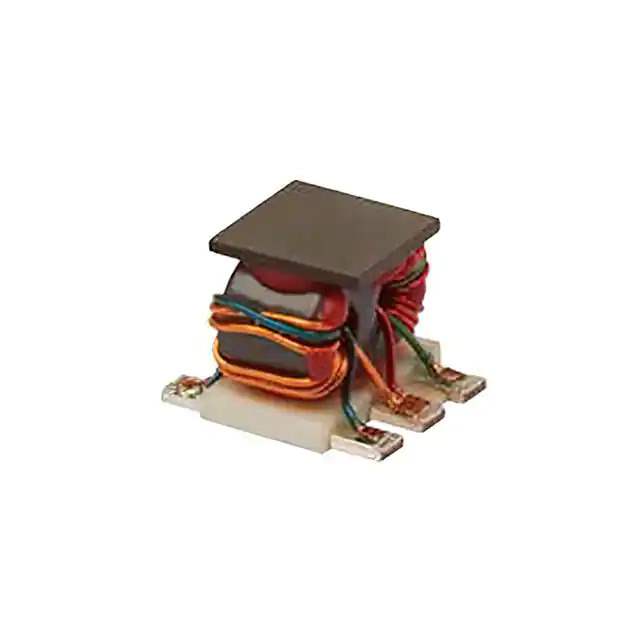

TC1-1TX+ Real Image
Same model may have multiple batches, images only for reference.

TC1-1TX+

Part No TC1-1TX+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:1 CORE & WIRE TRANSFORMER, 0.4 / RF Balun 400kHz ~ 500MHz 50 / 50Ohm 6-SMD (5 Leads), Flat Lead
Datasheet
TC1-1TX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 400kHz ~ 500MHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 5°
Insertion Loss (Max) 3dB
Return Loss (Min) 6.9dB
Package / Case 6-SMD (5 Leads), Flat Lead
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 720683-TC1-1TX+
Ultra Librarian 3D Model Ultra Librarian TC1-1TX+ CAD Model

Description

The 720683-TC1-1TX+ is a surface mount balun designed for RF and wireless applications. It is manufactured by Mini-Circuits.

  • Frequency Range: 400kHz to 500MHz
  • Impedance (Balanced/Unbalanced): 50/50 Ohm
  • Phase Difference: 5 degrees
  • Insertion Loss (Maximum): 3dB
  • Return Loss (Minimum): 6.9dB
  • Standard Package: 2,000 pieces
  • Package: 6-SMD (5 Leads), flat lead
  • Product Category: RF and Wireless - Balun
  • Product Status: Active
