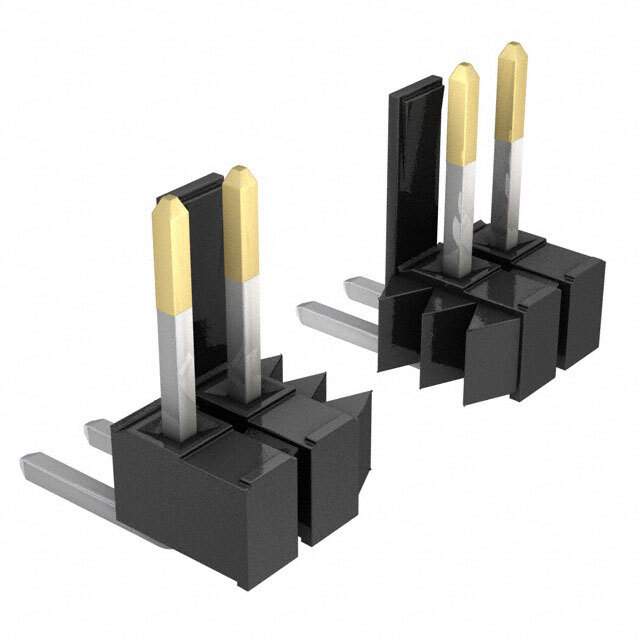

22-28-2159 Real Image
Same model may have multiple batches, images only for reference.

22-28-2159

Part No 22-28-2159
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, pcb Mount, recept, 15 Contacts, pin, 0.1 Pitch, r Angle Pc Tail Terminal
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Mating Length 7.493 mm
Contact Plating Gold
Country of Origin US
Current Rating 4 A
Depth 11.23 mm
Gender Male
Housing Color Black
Housing Material Nylon
Length 38.1 mm
Maximum Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 15
Number of Contacts 15
Number of Positions 15
Number of Rows 1
Orientation Right Angle
Packaging Bulk
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Win Source Part Number 1002498-22-28-2159
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 22-28-2159 CAD Model

Description

The Molex 1002498-22-28-2159 is a 15-position male pin connector with a 2.54 mm pitch.

  • Positions: 15
  • Pitch: 2.54 mm
  • Color: Black
  • Orientation: Right-Angle
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Mating Length: 7.493 mm
  • Current Rating: 4 A
  • Housing Material: Nylon
  • Number of Circuits: 15
  • Termination: Solder
  • Contact Material: Tin
  • Mounting: Through-Hole
  • Length: 38.1 mm
  • Depth: 11.23 mm
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 75 °C
