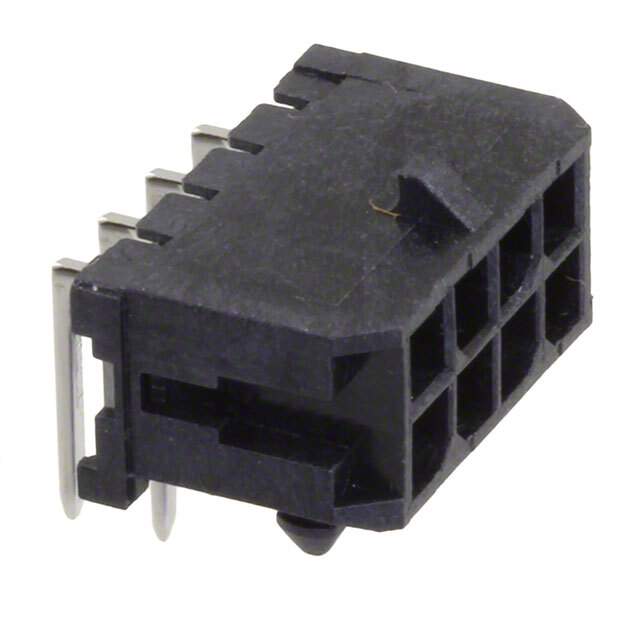

The Molex 43045-0800 is a Micro-Fit 3.0™ connector header designed for secure and reliable wire-to-board connections. Its eight-circuit, dual-row configuration delivers high signal density in a compact footprint. The positive locking mechanism ensures a secure mating connection, making it ideal for applications where vibration or accidental disconnections are a concern.

Applications:

• Industrial Equipment
• Robotics
• Medical Devices
• Automotive Systems
• Telecommunications Equipment
• Consumer Electronics
• Power Supplies

Features:

• Micro-Fit 3.0™ Interface: Provides a compact, high-density connection solution.
• Eight Circuits: Supports multiple signal or power lines within a single connector.
• Dual-Row Design: Maximizes circuit density while maintaining a small form factor.
• Through-Hole Termination: Offers a robust and reliable connection to the printed circuit board (PCB).
• Positive Locking: Ensures secure mating with compatible receptacles, preventing accidental disconnections.
• High-Temperature Thermoplastic Housing: Withstands high temperatures during soldering processes.
• Polarization Feature: Prevents mismating, ensuring correct connections every time.

Benefits:

• Increased Reliability: Positive locking and robust construction minimize the risk of connection failures.
• Space Savings: The compact Micro-Fit 3.0™ design allows for higher density packaging, reducing overall system size.
• Simplified Assembly: Through-hole termination makes soldering easy and efficient.
• Versatile Applications: Suitable for a wide range of industries and applications due to its compact size, secure locking, and high-temperature resistance.
• Reduced Downtime: Secure connections minimize the risk of accidental disconnections, reducing downtime and maintenance costs.
• Error Prevention: Polarization feature prevents incorrect mating, protecting sensitive electronic components.

Additional Details:

The Molex 43045-0800 is designed to mate with the Molex Micro-Fit 3.0™ receptacle series. It has a current rating of up to 5.0A per circuit. The housing material is high-temperature thermoplastic, compatible with reflow soldering processes. It meets industry standards for flammability and environmental compliance (RoHS compliant).
