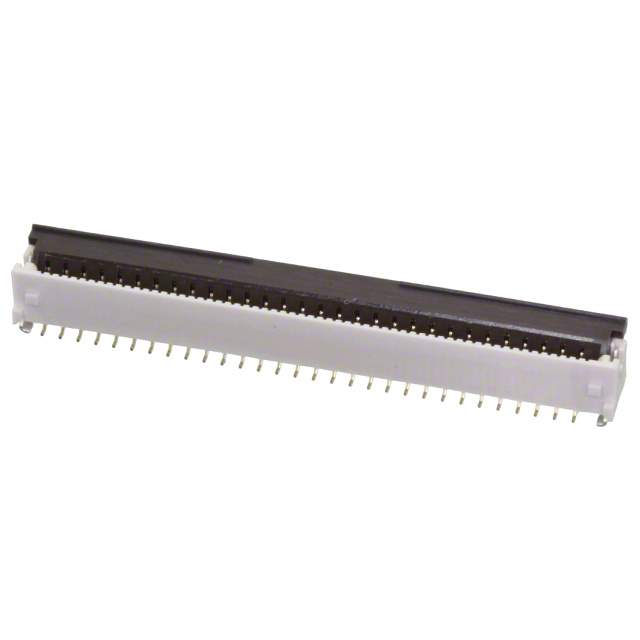

5019516010 Real Image1 5019516010 Real Image2
Same model may have multiple batches, images only for reference.
5019516010 Real Image1 5019516010 Real Image2
5019516010 Real Image1 5019516010 Real Image2
Same model may have multiple batches, images only for reference.

5019516010

Part No 5019516010
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 60POS 0.5MM SMD / 60 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series Easy-On 501951
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.159" (4.04mm)
Locking Feature Flip Lock
Cable End Type Straight, Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA9T), Nylon 9T, Glass Filled
Features -
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.4A
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color White
Actuator Color Brown
Mating Cycles 20
Base Product Number 501951
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 2,000 pcs
Win Source Part Number 1380854-5019516010
Ultra Librarian 3D Model Ultra Librarian 5019516010 CAD Model

Description

The Easy-On 501951 series is a reliable and high-performance FFC, FPC (Flat Flexible) connector assembly designed for various electronic applications. Molex manufactures it.

  • Number of Positions: 60
  • Pitch: 0.020" (0.50mm)
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Contact Side: Vertical, One-Sided
  • Voltage Rating: 50V
  • Current Rating: 0.4A
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
