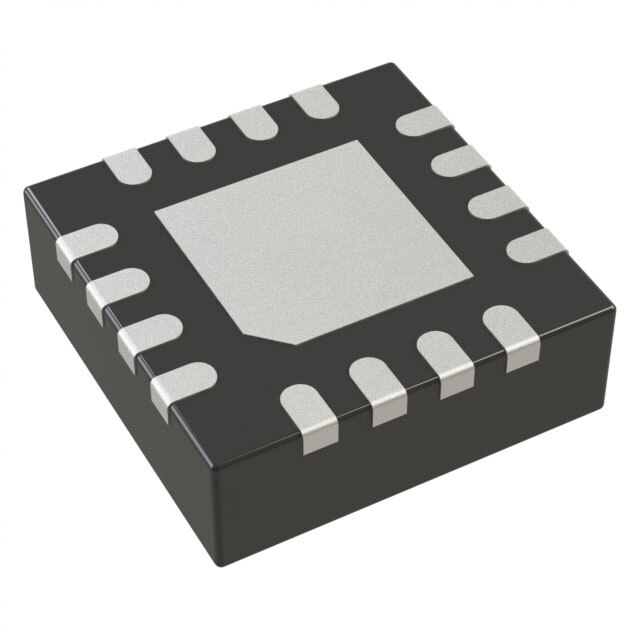

Same model may have multiple batches, images only for reference.
MA700GQ-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MA700GQ-Z

Part No MA700GQ-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Obsolete
For Measuring Angle
Technology Hall Effect
Output SPI
Actuator Type External Magnet, Not Included
Voltage - Supply 3V ~ 3.6V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Operating Temperature -40°C ~ 125°C
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Ultra Librarian 3D Model Ultra Librarian MA700GQ-Z CAD Model

Description

This Hall effect sensor is manufactured by Monolithic Power Systems Inc.

  • Package: 16-VFQFN exposed pad
  • Mounting Type: Surface mount
  • Operating Temperature: -40°C to 125°C
  • Package Quantity: Reel of 5000
  • Component Family: MA700
  • Category: Sensor
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
