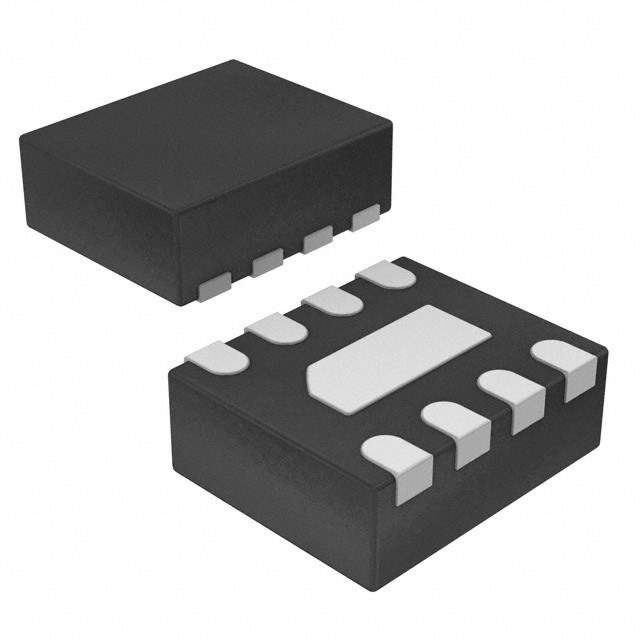

MP20043DGT-C-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP20043DGT-C-LF-Z

Part No MP20043DGT-C-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1.8V/2.8V 8TQFN / Dual Channel, 300mA Linear Regulator With Programmable Output Voltage and Output Discharge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Packaging Reel
Output Configuration Positive
Output Type Programmable
Number of Regulators 2
Maximum Input Voltage 5.5V
Voltage - Output (Min/Fixed) 1.8V, 2.8V
Maximum Output Voltage 3.3V, 3.3V
Maximum Dropout Voltage 0.28V at 300mA, 0.28V at 300mA
Current - Output 300mA, 300mA
Current - Quiescent (Iq) 90μA
Current - Supply (Maximum) 150μA
PSRR 75dB (100Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-VFDFN Exposed Pad
Supplier Device Package 8-TQFN (2x2)
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802798-MP20043DGT-C-LF-Z
Ultra Librarian 3D Model Ultra Librarian MP20043DGT-C-LF-Z CAD Model

Description

The MP20043DGT-C-LF-Z is a programmable output regulator with two outputs.

  • Outputs: Two
  • Current Output: 300mA for both outputs
  • Maximum Input Voltage: 5.5V
  • Output Configuration: Positive
  • Voltage Output: 1.8V and 2.8V
  • Enable Control: Yes
  • Package: 8-TQFN (2x2)
  • Maximum Dropout Voltage: 0.28V @ 300mA
  • Quiescent Current: 90μA
  • Maximum Output Voltage: 3.3V
  • Protection: Over-current, over-temperature, and short circuit
  • MSL Level: 1 (unlimited)
