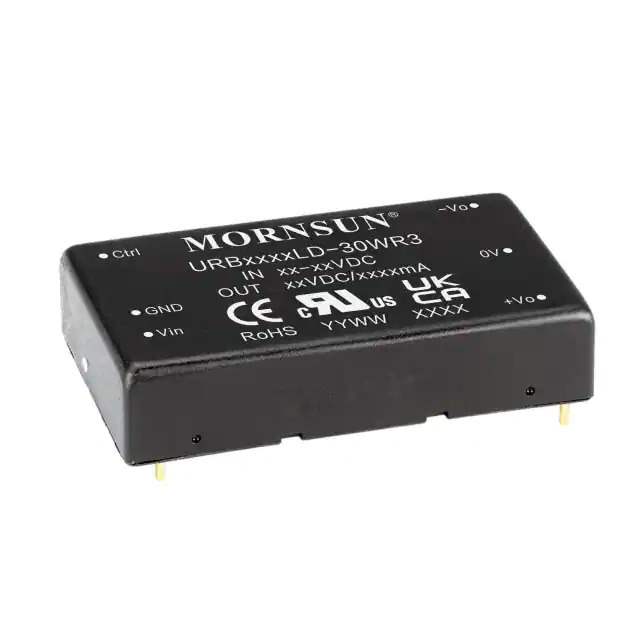

URB2424LD-30WR3 Real Image
Same model may have multiple batches, images only for reference.

URB2424LD-30WR3

Part No URB2424LD-30WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 30W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series URB2424LD-30WR3 (30W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
Approval Agency CB, CE, cURus, UKCA, UL
Standard Number 60950-1; 62368-1
Standard Package 19 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 695461-URB2424LD-30WR3
Ultra Librarian 3D Model Ultra Librarian URB2424LD-30WR3 CAD Model

Description

The URB2424LD-30WR3 is a 30W isolated module DC-DC converter designed for power supply applications in ITE (Commercial) devices. It has a size of 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) and features a through-hole mounting type.

  • Power: 30W
  • Applications: power supply in ITE (Commercial) devices
  • Size: 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
  • Mounting: through-hole
  • Voltage Isolation: 1.5 kV
  • Output Voltage: 24V
  • Output Current: 1.25A
  • Input Voltage Range: 9V to 36V
  • Efficiency: 90%
  • Package: 6-DIP module
  • Supplied: tube
  • Status: active product
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approval: CB, CE, cURus, UKCA, and UL
