Same model may have multiple batches, images only for reference.

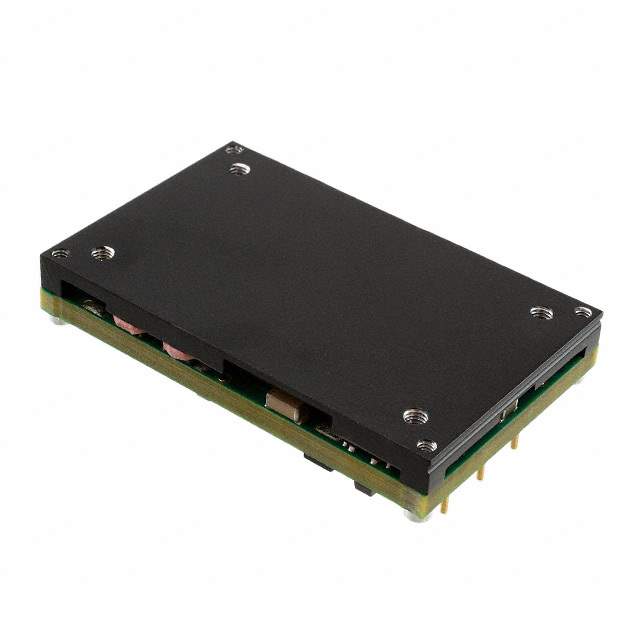

UWQ-12/17-Q48PB-C Real Image
Same model may have multiple batches, images only for reference.

UWQ-12/17-Q48PB-C

Part No UWQ-12/17-Q48PB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 204W / Isolated Module DC DC Converter 1 Output 12V 17A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series UWQ
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 17A
Power (Watts) 204 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 5-DIP Module, 1/4 Brick
Size / Dimension 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
Control Features Enable, Active High
Base Product Number UWQ-12
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1349597-UWQ-12/17-Q48PB-C
Ultra Librarian 3D Model Ultra Librarian UWQ-12/17-Q48PB-C CAD Model

Description

The Murata Power Solutions Inc UWQ series isolated module is a power supply board mount DC-DC converter designed by Murata Power Solutions Inc.

  • Type: Board Mount, DC-DC Converter
  • Power (Watts): 204W
  • Features: Remote On/Off, UVLO
  • Package: Tray
  • Size: 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
  • Number of Outputs: 1
  • Current - Output (Max): 17A
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 75V
  • Voltage - Isolation: 2.25 kV
  • Efficiency: 92%
  • Applications: ITE (Commercial)
  • ECCN: EAR99
