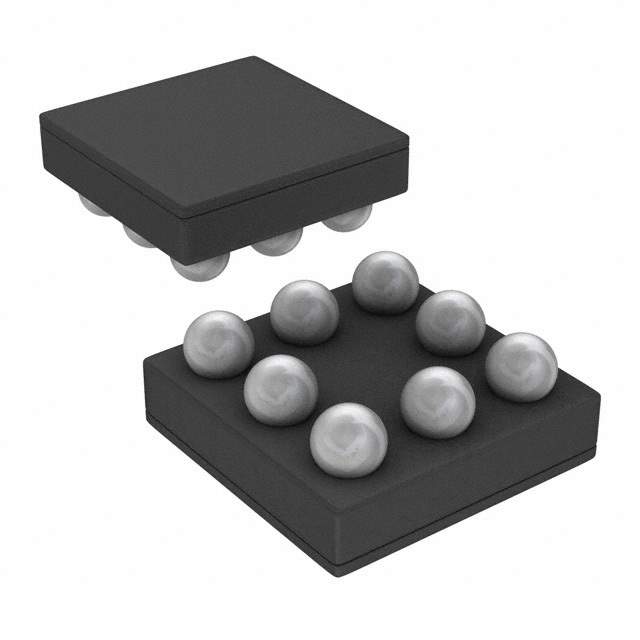

The LP3986TLX-2828 is a dual LDO (Low Dropout) voltage regulator from Texas Instruments (formerly National Semiconductor). It is designed to provide a stable and efficient power supply for various applications, especially in portable devices. It features two independent LDO regulators in a single package, allowing for space-saving and simplified designs. The '2828' likely indicates the output voltages of the two LDOs, which are likely 2.8V and 2.8V.

Applications:

• Mobile Phones: Powers various components, such as processors, memory, and peripherals.
• Smartphones: Provides efficient voltage regulation for power-sensitive components.
• PDAs (Personal Digital Assistants): Supplies stable power to the device's core components.
• GPS Devices: Regulates the voltage for GPS receivers and processors.
• Portable Media Players: Powers the display, audio amplifier, and processor.

Features:

• Dual LDO Regulators: Provides two independent voltage regulators in a single package.
• Low Dropout Voltage: Ensures efficient operation even with a small input-output voltage difference.
• 2.8V Fixed Output Voltage (x2): Delivers a stable and accurate 2.8V regulated output.
• Low Quiescent Current: Minimizes power consumption when the device is in standby mode.
• Overcurrent Protection: Protects the regulator and connected circuitry from damage due to excessive current.
• Thermal Overload Protection: Shuts down the regulator if the internal temperature exceeds a safe limit.

Benefits:

• Space Saving: Integrates two regulators into one package, reducing board space requirements.
• High Efficiency: Minimizes power loss and extends battery life in portable devices.
• Stable Output Voltage: Ensures reliable operation of connected devices.
• Long Battery Life: Low quiescent current contributes to longer battery life.
• Protection Features: Enhances the reliability and robustness of the system.

Additional Details:

The LP3986TLX-2828 typically requires small ceramic capacitors for stability, typically 1μF on the input and output of each LDO. The device is usually packaged in a small outline package, suitable for surface mount assembly. The low dropout voltage characteristic is crucial in battery-powered applications, as it allows the device to maintain a stable output voltage even as the battery voltage decreases. The independent enable pins for each LDO allow for individual control and power sequencing. The overcurrent and thermal overload protection features protect the device and connected circuitry from damage due to fault conditions. The low quiescent current is a significant advantage in portable applications, as it reduces the standby power consumption and extends battery life.
