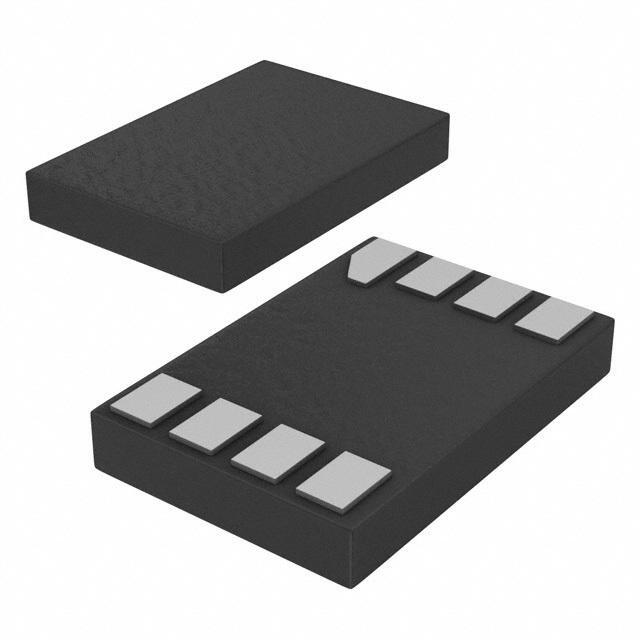

74LVC3G14GD,125 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC3G14GD,125

Part No 74LVC3G14GD,125
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC TRIGGER SCHMITT TRPL 8-XSON
Datasheet
74LVC3G14GD,125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Nexperia USA Inc.
Series 74LVC
Packaging Reel package
Logic Type Inverter
Number of Circuits 3
Number of Inputs 3
Features Schmitt Trigger
Operating Supply Voltage 1.65 V ~ 5.5 V
Maximum Quiescent Current 4μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.25 V ~ 1.2 V
Logic Level - High 1.5 V ~ 3.6 V
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Manufacturer Package 8-XSON, SOT996-2 (2x3)
Package 8-XFDFN
Win Source Part Number 765769-74LVC3G14GD,125
Popularity Medium
Supply and Demand Status Limited
Family Name 74LVC3G14
Introduction Date May 10, 2004
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 74LVC3G14GD,125 CAD Model

Description

The 74LVC3G14GD,125 from Nexperia USA Inc. is an inverter logic IC.

  • Schmitt Trigger: Yes
  • Current Output: 32mA
  • Supply Voltage Range: 1.65V to 5.5V
  • Maximum Propagation Delay: 4.3ns @ 5V and 50pF
  • Package: 8-XFDFN
  • Family: 74LVC3G14
