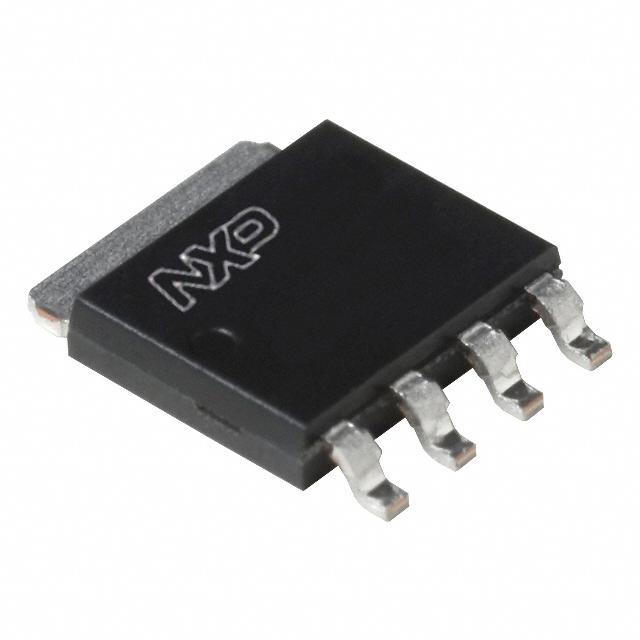

The Nexperia USA Inc. PH3120L,115 is a N-channel MOSFET with a drain-source breakdown voltage of 20V and a continuous drain current of 100A @ 25°C.

• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current: 100A @ 25°C
• Maximum Rds on: 2.65 mOhm @ 25A, 10V
• Package: LFPAK56, Power-SO8
• Dimension: SC-100, SOT-669
• Maximum Gate-Source Voltage: ±20V
• Gate-Source Threshold Voltage: 2V @ 1mA
• Maximum Gate Charge: 48.5nC @ 4.5V
• Maximum Input Capacitance: 4457pF @ 10V
• Power Dissipation: 62.5W (Tc)
• Operating Temperature Range: -55°C to 150°C (TJ)
