PMBT3906MB,315 Nexperia USA Inc.

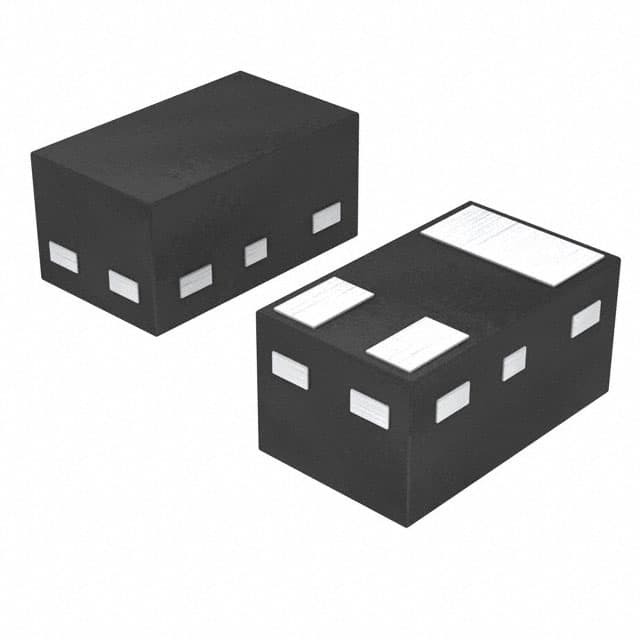

Same model may have multiple batches, images only for reference.

PMBT3906MB,315

Part No PMBT3906MB,315
Manufacturer Nexperia USA Inc.
Catalog RF Transistors (BJT)
Description TRANS PNP 40V 0.2A 3DFN  /  Bipolar (BJT) Transistor PNP 40 V 200 mA 250MHz 250 mW Surface Mount DFN1006B-3
Datasheet
PMBT3906MB,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Transistor Type PNP
Current - Collector (Ic) (Max) 200 mA
Voltage - Collector Emitter Breakdown (Max) 40 V
Vce Saturation (Max) @ Ib, Ic 400mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 1V
Power - Max 250 mW
Frequency - Transition 250MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case 3-XFDFN
Supplier Device Package DFN1006B-3
Base Product Number PMBT3906
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Other Names 934065893315
Standard Package 10,000
Win Source Part Number 1124885-PMBT3906MB,315
Ultra Librarian 3D Model Ultra Librarian PMBT3906MB,315 CAD Model

Description

The PMBT3906MB,315 is a PNP bipolar junction transistor manufactured by Nexperia USA Inc.

  • Category: Discrete Semiconductor Products
  • Series: Automotive, AEC-Q101
  • Packaging Type: Tape and Reel
  • Popularity: High
  • Maximum Power: 250 mW
  • Voltage Collector-Emitter Breakdown: 40V
  • DC Current Gain (hFE) (Min): 100 @ 10mA, 1V
  • Frequency Transition: 250MHz

This transistor is ideal for use in various electronic circuits including audio amplifiers, power supplies, and voltage regulators.
