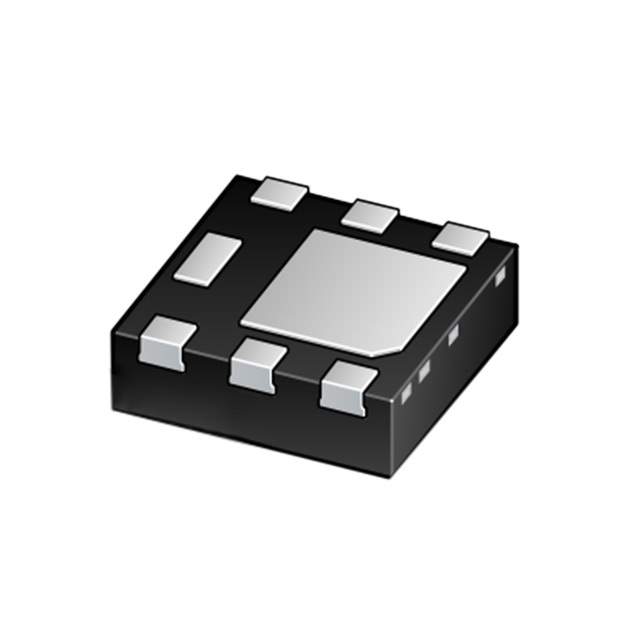

PMPB55XNEAX

Name: PMPB55XNEAX
Brand: Nexperia USA Inc.
SKU: 1206863
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMPB55XNEAX
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 3.8A 6DFN / N-Channel 30 V 3.8A (Ta) 550mW (Ta) Surface Mount DFN2020MD-6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel (TR)
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	72mOhm @ 3.8A, 4.5V
Vgs(th) (Max) @ Id	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 4.5 V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	255 pF @ 15 V
Power Dissipation (Max)	550mW (Ta)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DFN2020MD-6
Package / Case	6-UDFN Exposed Pad
Base Product Number	PMPB55
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0095
Other Names	934070283115
Standard Package	3,000
Win Source Part Number	1206863-PMPB55XNEAX
Ultra Librarian 3D Model	Ultra Librarian PMPB55XNEAX CAD Model

Alternative Products

Description

The Nexperia USA Inc. PMPB55XNEAX is a MOSFET transistor that is part of the automotive, AEC-Q101 series.

Drain to Source Voltage: 30V
Current - Continuous Drain: 3.8A (Ta)
Supply and Demand Status: balanced
Manufacturer: Nexperia USA Inc.
Maximum Power Dissipation: 550mW (Ta)
Package/Case: 6-UDFN Exposed Pad
Supplier Device Package: DFN2020MD-6
