The PSMN012-80BS,118 is an 80 V, 12 mOhm logic level MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from Nexperia. It is designed for high-efficiency power switching applications. This MOSFET features TrenchMOS technology, offering a superior combination of low on-state resistance and fast switching speeds.

Applications:

• DC-DC converters
• Load switches
• Power management in portable devices
• Motor control circuits
• Synchronous rectification

Features:

• Low on-state resistance (Rds(on)): Minimizes power loss and improves efficiency.
• Logic level gate drive: Allows direct drive from microcontrollers and other low-voltage logic circuits.
• TrenchMOS technology: Provides optimal balance between on-state resistance and gate charge.
• Fast switching speed: Reduces switching losses and improves overall efficiency.
• Lead-free and RoHS compliant: Meets environmental regulations.
• Automotive qualified (AEC-Q101): Suitable for automotive applications.

Benefits:

• High efficiency: Low on-state resistance and fast switching speed minimize power losses.
• Simplified drive circuitry: Logic level gate drive simplifies the design of drive circuits.
• Compact design: Small footprint allows for compact designs.
• Improved thermal performance: Efficient heat dissipation improves reliability.
• Enhanced system reliability: Robust design ensures reliable operation in demanding environments.

Additional Details:

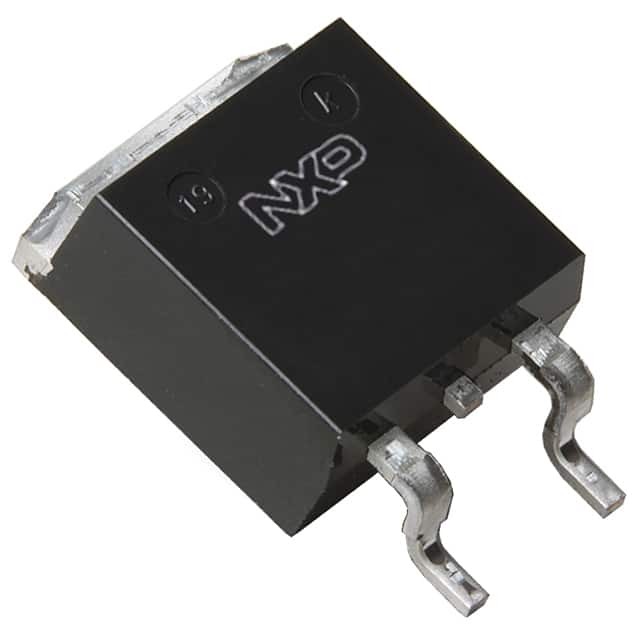

The PSMN012-80BS,118 comes in a D2PAK (TO-263) surface-mount package. It has a continuous drain current (Id) of up to 80A, and a pulsed drain current (Idm) of up to 240A. The gate-source voltage (Vgs) is rated at ±20V. The operating junction temperature range is -55°C to +175°C. Its low gate charge (Qg) contributes to its fast switching performance. The device's thermal resistance from junction to case (Rth(j-c)) is very low, allowing for efficient heat dissipation. This MOSFET is particularly well-suited for applications requiring high efficiency and compact size.
