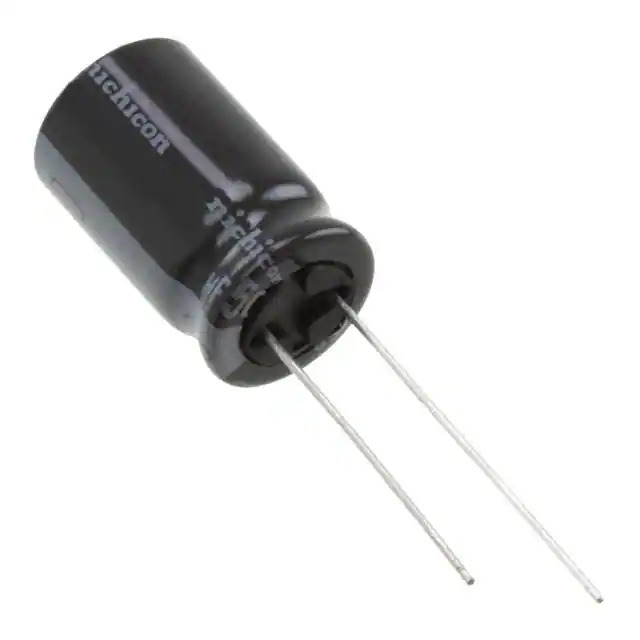

Same model may have multiple batches, images only for reference.

UHW1H561MHD

Name: UHW1H561MHD
Brand: Nichicon
SKU: 1356051
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UHW1H561MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 560UF 20% 50V RADIAL / 560 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UHW1H561MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHW
Package	Bulk
Product Status	Not For New Designs
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.15 A @ 120 Hz
Ripple Current @ High Frequency	2.3 A @ 100 kHz
Impedance	27 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1356051-UHW1H561MHD
Ultra Librarian 3D Model	Ultra Librarian UHW1H561MHD CAD Model

Alternative Products

Description

The UHW1H561MHD is an aluminum electrolytic capacitor from Nichicon's UHW series.

Series: UHW
Capacitance: 560 μF
Voltage Rating: 50 V
Tolerance: ±20%
Ripple Current (Low Frequency): 1.15 A @ 120 Hz
Ripple Current (High Frequency): 2.3 A @ 100 kHz
Size: 0.492" diameter x 0.866" height
Mounting Type: Through-Hole
Lifetime: 10000 hours @ 105°C
Polarized: Yes
Lead Spacing: 0.197"
Packaging: Bulk
Recommended for New Designs: No
