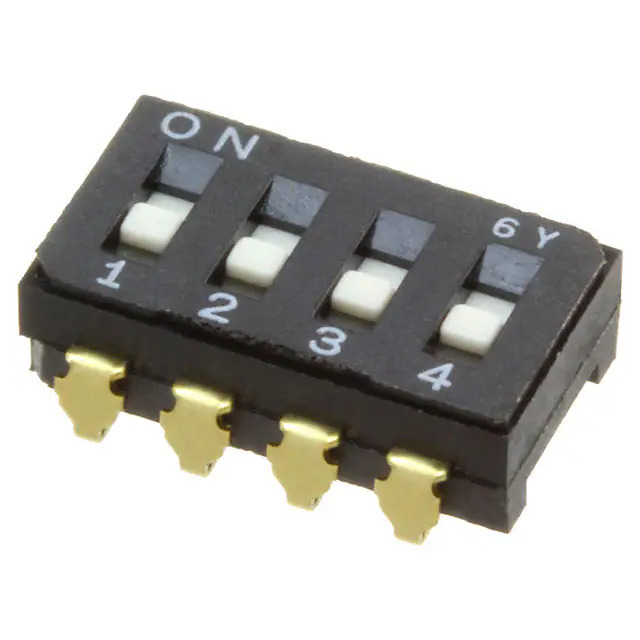

CFS-0402TA Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CFS-0402TA

Part No CFS-0402TA
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP 4POS SPST 100MA 6V
Datasheet
CFS-0402TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series CFS
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.177" (4.50mm)
Mounting Type Surface Mount
Termination Style J Lead
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.457" (11.61mm)
Mechanical Life -
Electrical Life 1,000 Cycles
Base Product Number CFS-0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376351-CFS-0402TA
Ultra Librarian 3D Model Ultra Librarian CFS-0402TA CAD Model

Description

The CFS-0402TA is a DIP switch from Nidec Components Corporation's CFS series.

  • Series: CFS
  • Actuator Type: Slide
  • Number of Positions: 4
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Contact Material: Copper Alloy, Gold Finish
  • Body Material: Polyphenylene Sulfide (PPS)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.177" (4.50mm)
  • Washable: No
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Category: DIP Switches
  • Product Status: Active
