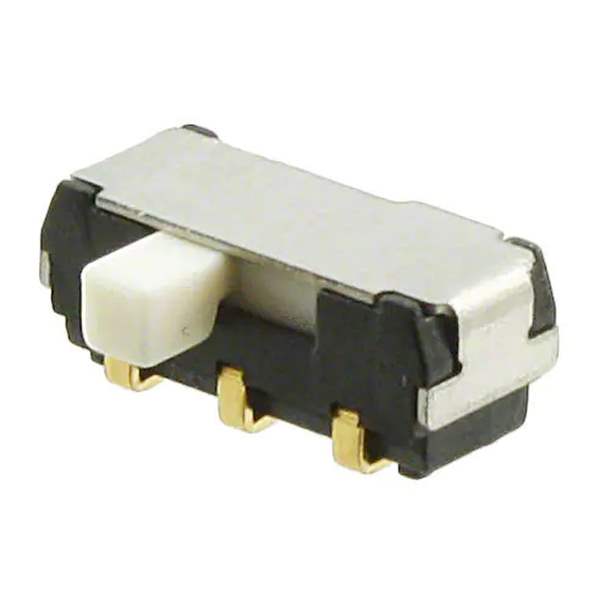

CL-SB-22A-11T Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-SB-22A-11T

Part No CL-SB-22A-11T
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 200MA 12V
Datasheet
CL-SB-22A-11T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CL-SB
Package Tape & Reel
Product Status Active
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper
Contact Finish Silver
Mounting Type Surface Mount, Right Angle
Termination Style J Lead
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 153gf
Base Product Number CL-SB-22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376331-CL-SB-22A-11T
Ultra Librarian 3D Model Ultra Librarian CL-SB-22A-11T CAD Model

Description

The CL-SB-22A-11T is a DPDT On-On slide switch from Nidec Components Corporation.

  • Current Rating (DC): 200mA
  • Voltage Rating (DC): 12V
  • Actuator Type: Standard
  • Termination Style: J Lead
  • Operating Force: 153gf
  • Switch Travel: 2.00mm
  • Electrical Life: 10,000 cycles
