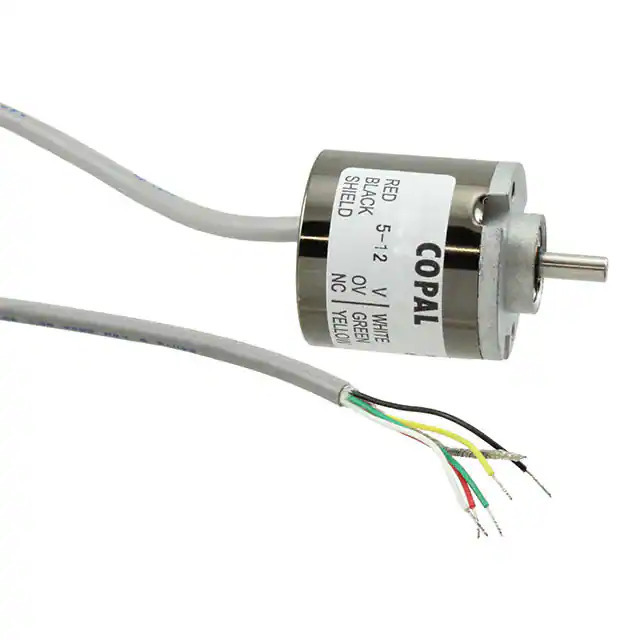

RE30E-400-213-1 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

RE30E-400-213-1

Part No RE30E-400-213-1
Manufacturer Nidec Copal Electronics
Catalog Encoders
Description ROTARY ENCODER OPTICAL 400PPR
Datasheet
RE30E-400-213-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Nidec Components Corporation
Series RE30E
Package Tray
Product Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 400
Voltage - Supply 5V ~ 12V
Actuator Type Shaft
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation User Selectable
Termination Style Wire Leads
Rotational Life (Cycles Min) -
Base Product Number RE30E
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1376126-RE30E-400-213-1
Ultra Librarian 3D Model Ultra Librarian RE30E-400-213-1 CAD Model

Description

The RE30E is an industrial encoder manufactured by Nidec Components Corporation.

  • Output Type: Quadrature with Index (Incremental)
  • Voltage Supply: 5V to 12V
  • Orientation: User Selectable
  • Actuator Type: Shaft
  • Termination Style: Wire Leads
  • Encoder Type: Optical
  • Pulses per Revolution: 400
  • Mounting Type: Chassis Mount
  • Built-in Switch: No
  • Rotational Life: -
  • Status: Active
