Same model may have multiple batches, images only for reference.

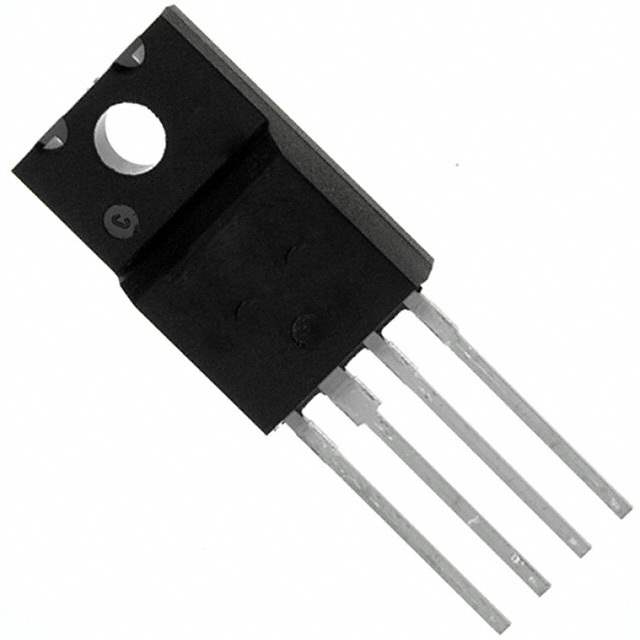

NJM2388F05 Real Image
Same model may have multiple batches, images only for reference.

NJM2388F05

Part No NJM2388F05
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 5V 1A TO220F-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Package Tube
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 35V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 0.5V @ 500mA
Current - Output 1A
Current - Quiescent (Iq) 5 mA
PSRR 67dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case TO-220-4 Full Pack
Supplier Device Package TO-220F-4
Base Product Number NJM2388
Standard Package 50 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 254386-NJM2388F05
Ultra Librarian 3D Model Ultra Librarian NJM2388F05 CAD Model

Description

The NJM2388F05 is a voltage regulator with a fixed 5V output. It is designed for power management applications in electronic circuits.

  • Maximum Input Voltage: 35V
  • Output Voltage: 5V
  • Maximum Output Current: 1A
  • Features: Enable control, over current protection, over temperature protection, over voltage protection
  • Operating Temperature Range: -40°C to 85°C
  • Package: TO-220-4 Full Pack
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220F-4
  • PSRR: 67dB @ 120Hz
  • Product Status: Active
  • Manufacturer: Nisshinbo Micro Devices Inc.
