Same model may have multiple batches, images only for reference.

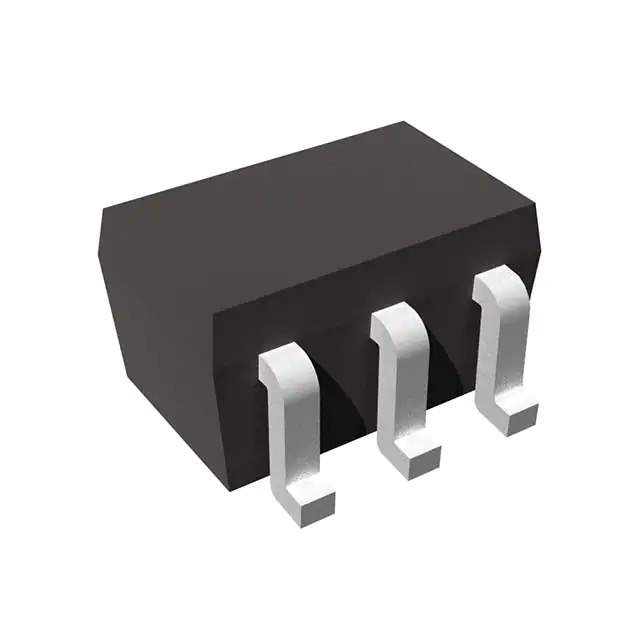

RP109Q102D-TR-FE Real Image
Same model may have multiple batches, images only for reference.

RP109Q102D-TR-FE

Part No RP109Q102D-TR-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1V 150MA SC88A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP109x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1V
Voltage Dropout (Max) 0.82V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 70 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package SC-88A
Base Product Number RP109
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 660925-RP109Q102D-TR-FE
Ultra Librarian 3D Model Ultra Librarian RP109Q102D-TR-FE CAD Model

Description

The RP109x series is a family of linear voltage regulators designed for power management applications.

  • Current Output: 150mA
  • Output Type: Fixed output
  • Enable Control: Yes
  • Input Voltage: Up to 5.25V
  • Output Voltage: Fixed @ 1V
  • Package: Surface mount, 5-TSSOP, SC-70-5, SOT-353
  • Protection Features: Over current
  • Manufacturer: Nisshinbo Micro Devices Inc.
  • Status: Active
