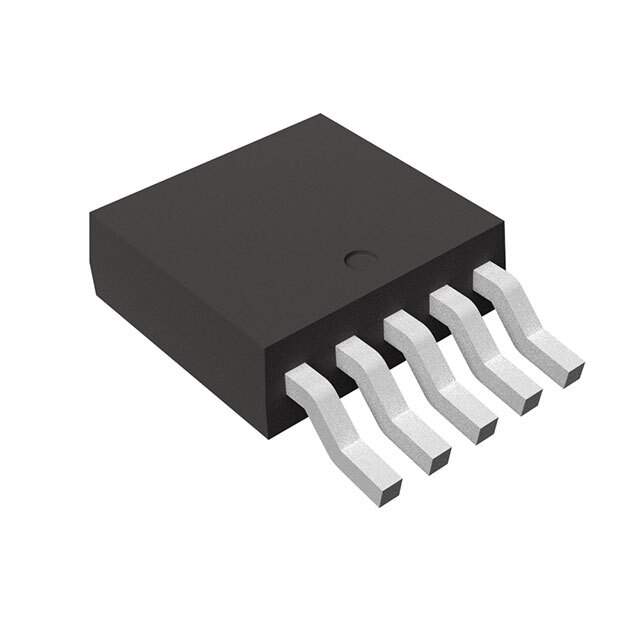

RP132J001B-T1-FE Real Image
Same model may have multiple batches, images only for reference.

RP132J001B-T1-FE

Part No RP132J001B-T1-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN POS ADJ 1A TO252-5-P2 / Linear Voltage Regulator IC Positive Adjustable 1 Output 1A TO-252-5-P2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP132x
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 6.5V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5.5V
Voltage Dropout (Max) 1.54V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 85 µA
PSRR 70dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package TO-252-5-P2
Base Product Number RP132
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names RICRICRP132J001B-T1-FE,2156-RP132J001B-T1-FE
Standard Package 3,000
Win Source Part Number 970625-RP132J001B-T1-FE
Ultra Librarian 3D Model Ultra Librarian RP132J001B-T1-FE CAD Model

Description

The Nisshinbo Micro Devices Inc. RP132J001B-T1-FE is an integrated circuit designed for use in voltage regulators. The integrated circuit is manufactured by Nisshinbo Micro Devices Inc.

  • Series: RP132x
  • Package: TO-252-6, DPak (5 Leads + Tab)
  • Maximum Output Voltage: 5.5V
  • Minimum/Fixed Output Voltage: 0.8V
  • Adjustable: yes
  • Current Output: 1A
  • Supply Voltage Range: 6.5V and below
  • PSRR: 70dB (1kHz)
  • Protection Features: over current and over temperature
  • Current Quiescent: 85 µA
  • Supply and Demand Status: limited supply
