Product Overview: NXP 74LVT32374EC,557

The NXP 74LVT32374EC,557 is a high-performance, low-voltage 32-bit transparent D-type latch with 3-state outputs. This integrated circuit is part of the LVT family, which is known for its low-voltage technology designed to operate at 3.3V while maintaining the capability to interface with 5V signals. The 74LVT32374EC,557 is specifically engineered to meet the requirements of high-speed memory addressing and data routing applications, making it an ideal choice for advanced telecommunication systems, computing hardware, and high-speed data processing equipment.

The device features a 32-bit bus interface, which allows for efficient data transfer and significantly reduces the complexity of data routing in high-speed systems. Each latch has a separate output-enable (OE) input which can be used to place the outputs in either a high-impedance state or a low-impedance state, thereby enabling bidirectional bus interfacing. This is particularly useful in scenarios where data must be shared between different components without risking data corruption or bus contention.

One of the key attributes of the 74LVT32374EC,557 is its ability to support live insertion and withdrawal (hot swapping), which minimizes system downtime and allows for maintenance or upgrades without having to power down the system. This feature is critical in server environments and other mission-critical applications where continuous operation is essential.

Moreover, the device boasts a latch-up performance that exceeds 500mA, which is compliant with the JESD78 Class II level B standard. This ensures that the latch is resilient to sudden spikes in current, providing a robust solution for electronic systems that may experience such conditions.

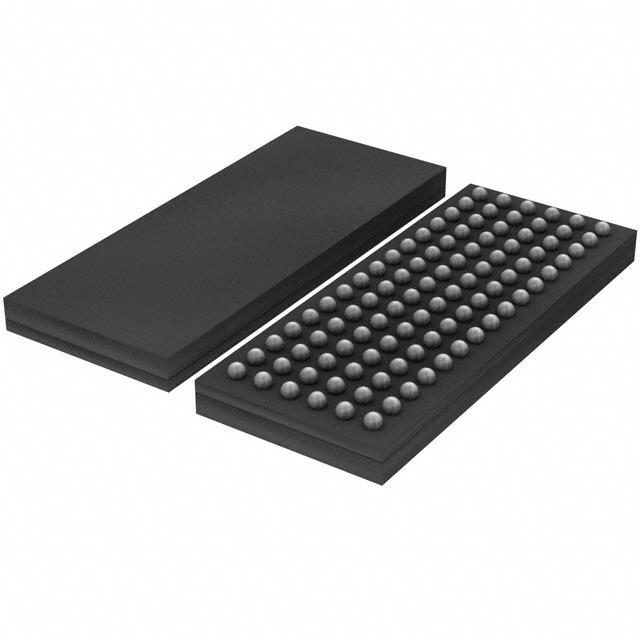

The 74LVT32374EC,557 is packaged in a 96-LBGA (Low-profile Ball Grid Array) package, which is designed for space-saving on the PCB while still providing excellent thermal performance and reliable electrical connections. Furthermore, the device is fully specified for partial power-down applications using Ioff, which ensures a lower power consumption when the device is not in active use.

In summary, the NXP 74LVT32374EC,557 is a versatile, high-speed latch that offers excellent performance for systems requiring high data throughput, robust operation, and the flexibility of hot swapping capabilities.
