The LPC3130FET180 is a high-performance, low-power microcontroller produced by NXP Semiconductors. This microcontroller is part of the LPC3100 series, which is designed to offer a versatile solution for embedded applications requiring a balance of power efficiency and processing capability. The LPC3130 is particularly well-suited for portable devices, industrial control systems, and Internet of Things (IoT) applications.

Key Features

• Core: The LPC3130FET180 is built around an ARM926EJ-S core, which operates at frequencies up to 180 MHz. This core provides a robust set of features, including ARM's Jazelle technology for Java acceleration, and is capable of running a variety of operating systems, including Linux.
• Memory: It comes equipped with 96 KB of on-chip SRAM and an external memory controller that supports a range of memory types, including NAND flash, NOR flash, and mobile DDR SDRAM, making it highly adaptable to different storage requirements.
• Peripherals: A wide range of peripherals is integrated, including USB 2.0 full-speed device, UARTs, I2C-bus interfaces, SPI, SSP, and a 24-bit LCD controller that supports both STN and TFT panels. These peripherals enable the microcontroller to handle complex communication tasks and interface with various electronic components.
• Power Efficiency: The LPC3130FET180 is designed for power-sensitive applications. It features a range of power-saving modes, allowing designers to optimize the power consumption for their specific use case.

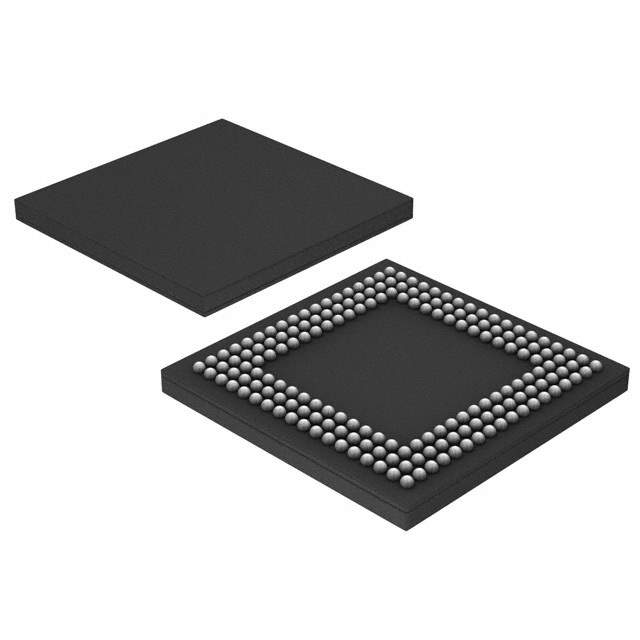

• Package: The product is offered in a compact 180-ball TFBGA (Thin Fine-Pitch Ball Grid Array) package, which is ideal for space-constrained applications.

Applications

The versatility of the LPC3130FET180 makes it suitable for a wide array of applications. These include but are not limited to portable audio players, digital signal processing, industrial control systems, embedded gateways, and various IoT devices that require a combination of connectivity, processing power, and energy efficiency.

Conclusion

The NXP LPC3130FET180 microcontroller is a powerful and flexible solution for modern embedded systems. Its combination of an efficient ARM core, extensive memory options, comprehensive peripheral set, and power-saving capabilities make it an excellent choice for designers looking to create advanced, power-conscious products.
