The NXP LPC3250FET296/01K is a feature-rich microcontroller designed to meet the needs of demanding embedded applications. It is part of the LPC3200 family, which is known for its high performance and low power consumption. This microcontroller is based on the ARM926EJ-S core, which operates at speeds of up to 266 MHz, providing the computational power necessary for complex tasks.

Key Features:

• Processor Core: ARM926EJ-S, capable of running up to 266 MHz.
• Memory: Includes 256 KB of internal SRAM, with a 32-bit wide interface for fast access.
• External Memory Interface: Supports a wide range of external memory devices, including NAND Flash, SDRAM, and Static Memory.
• Graphics: Integrated LCD controller supports STN and TFT panels, enabling rich visual interfaces.
• Connectivity: Offers an array of connectivity options such as USB 2.0 Full-Speed, USB 2.0 High-Speed with on-chip PHY, Ethernet, and multiple serial interfaces.
• Advanced Peripherals: Features an array of peripherals including I2S audio interface, SD/MMC card interface, and a 10-bit ADC.

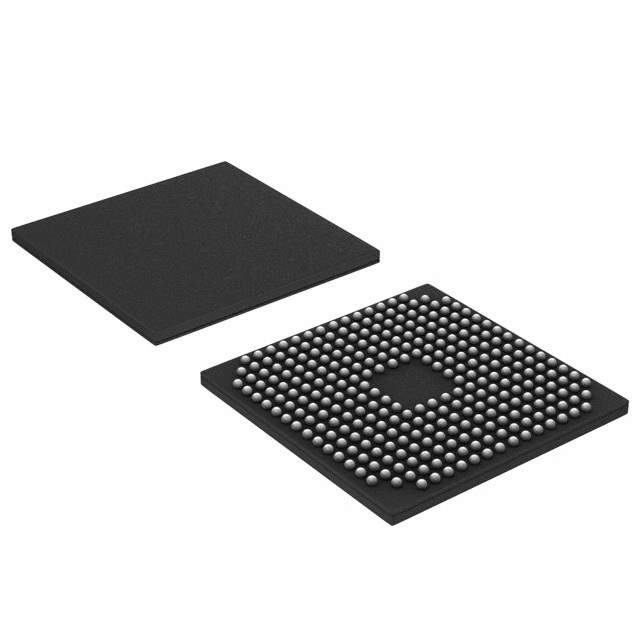

• Package: Available in a 296-pin LFBGA package, providing a compact footprint for space-constrained applications.
• Power Management: Sophisticated power management techniques allow for reduced power consumption in various modes, making it ideal for battery-powered devices.

Applications:

The LPC3250FET296/01K is versatile and can be used in a wide range of applications. It is particularly well-suited for industrial control, medical systems, point-of-sale terminals, communication gateways, and in-vehicle navigation and entertainment systems.

Development Support:

NXP provides comprehensive development support for the LPC3250FET296/01K, including development boards, software libraries, and a robust ecosystem of tools. This ensures that developers can rapidly prototype and deploy their applications with this microcontroller.
