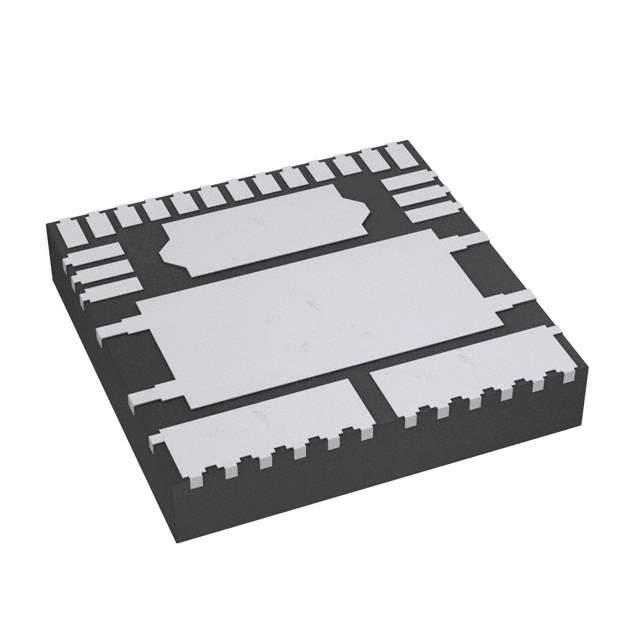

Product Overview: MC10XS4200BFKR2 by NXP

The MC10XS4200BFKR2 is a sophisticated, high-performance power switch designed by NXP Semiconductors, tailored for automotive and industrial applications. This advanced device is engineered to deliver exceptional control and protection for loads with high inrush current, making it a reliable choice for managing various electrical systems.

Key Features

• High Current Handling: The MC10XS4200BFKR2 can manage continuous current up to 20A, making it suitable for heavy-duty operations.
• Dual Channel Output: It features two independent programmable channels, allowing for flexible control of different load types within the same system.
• Wide Voltage Range: With an operating voltage range from 6V to 28V, this device is versatile and can adapt to various electrical environments.
• Advanced Protection: It includes overcurrent protection, overtemperature shutdown, and undervoltage shutdown, ensuring the safety and longevity of both the switch and the load.
• Diagnostic Functions: Integrated diagnostics provide feedback on the state of the switch, the load, and the system, facilitating maintenance and troubleshooting.
• SPI Interface: The Serial Peripheral Interface (SPI) allows for digital communication and control, offering precise operation and configurability.

Applications

The MC10XS4200BFKR2 is well-suited for a range of applications where robust control and protection are essential. Typical uses include automotive systems such as power distribution boxes, body control modules, and engine control units. In industrial settings, it can be employed in factory automation, robotics, and process control systems.

Quality and Reliability

NXP's commitment to quality is evident in the MC10XS4200BFKR2, which is built to meet the stringent requirements of the automotive industry. The device is AEC-Q100 qualified, ensuring high reliability and performance in the challenging conditions faced by automotive electronics.
