NXP MMRF1011HR5 LDMOS RF Power Transistor

The NXP MMRF1011HR5 is a high-performance Laterally Diffused Metal Oxide Semiconductor (LDMOS) RF power transistor designed for a broad array of high-frequency applications. This device is particularly well-suited for broadcast and industrial, scientific, and medical (ISM) applications, offering a powerful solution for RF energy needs.

Key Features:

• Frequency Range: The MMRF1011HR5 operates in the 1.8 to 600 MHz frequency range, making it versatile for various RF applications.
• High Output Power: With a high output power of 125 Watts CW, this LDMOS transistor can handle demanding power requirements with ease.
• High Gain: It offers a high gain of 23 dB, ensuring strong signal amplification for efficient transmission and reception.
• High Efficiency: The device boasts an excellent efficiency of up to 70%, minimizing energy loss and heat generation during operation.
• Robustness: The MMRF1011HR5 is designed to withstand a high voltage standing wave ratio (VSWR) of 10:1, demonstrating its durability and resilience under mismatched load conditions.
• Integrated ESD Protection: Electrostatic Discharge (ESD) protection is built into the device to safeguard against sudden electrical spikes, enhancing its reliability.

Applications:

• Broadcast transmitters for AM, FM, and digital audio broadcasting (DAB)
• Plasma generators for industrial applications
• RF power sources for medical applications such as MRI and RF ablation
• Particle accelerators and other scientific applications

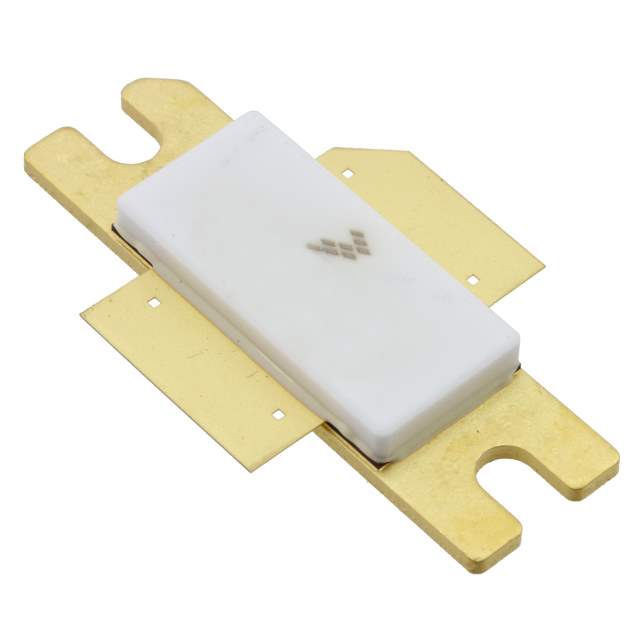

The MMRF1011HR5 is housed in a rugged ceramic package designed for high thermal performance, ensuring it can operate effectively even under high-temperature conditions. With its combination of power, efficiency, and durability, the NXP MMRF1011HR5 LDMOS RF power transistor serves as a reliable component for engineers looking to optimize their RF designs.
