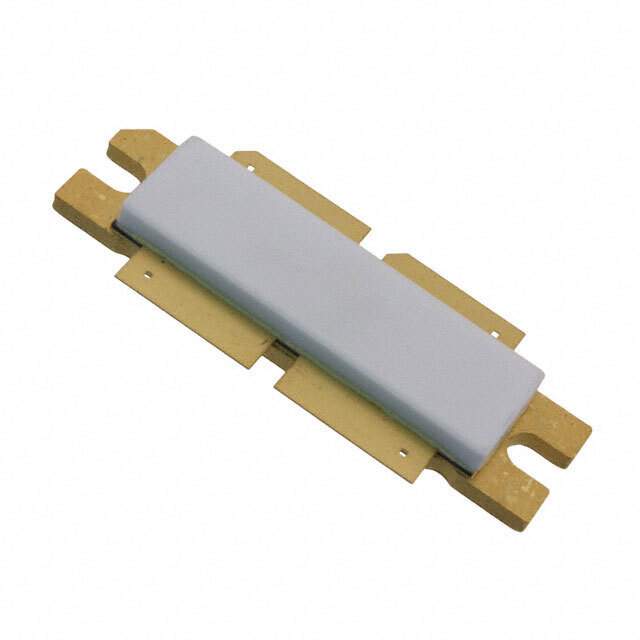

Introducing the MRFE6VP5600HR5 RF Power Transistor from NXP

The MRFE6VP5600HR5 is a high-performance, rugged RF power LDMOS transistor designed and manufactured by NXP Semiconductors. This device is engineered to deliver outstanding output power, gain, and efficiency, making it an ideal solution for a wide range of applications, including broadcast transmission, industrial, scientific, medical (ISM), and radio and VHF TV broadcast, to name a few.

With an advanced LDMOS technology, the MRFE6VP5600HR5 operates at a frequency range of 1.8-600 MHz, providing a versatile platform for various RF applications. The transistor is capable of outputting a remarkable 600W of continuous wave power, ensuring robust performance for high-demand systems.

Key Features of MRFE6VP5600HR5:

• Wide Frequency Range: Operates across 1.8-600 MHz, suitable for a broad spectrum of RF applications.
• High Output Power: Capable of delivering 600W CW over the entire frequency range.
• High Gain: Offers excellent gain performance, typically 23 dB, which enhances overall system efficiency.
• High Efficiency: Up to 75% drain efficiency, reducing energy consumption and operational costs.
• Ruggedness: Can withstand a VSWR of 65:1 at 50V, providing durability under severe load mismatch conditions.
• Integrated ESD Protection: Features integrated ESD protection for enhanced reliability and longevity of the device.
• Thermally Enhanced Package: Comes in a high thermal conductivity package, ensuring heat is effectively dissipated, which is critical for maintaining performance and reliability.

The MRFE6VP5600HR5 transistor is also characterized by its ease of integration, thanks to its excellent thermal stability and consistency in performance over a wide range of environmental conditions. This component is designed to be a drop-in replacement for many existing RF power amplifiers, making upgrades and maintenance straightforward for engineers and technicians.

Whether for commercial or industrial purposes, the MRFE6VP5600HR5 from NXP stands out as a reliable and efficient choice for high-power RF applications. Its combination of ruggedness, performance, and efficiency ensures that it can meet the demands of even the most challenging systems.
