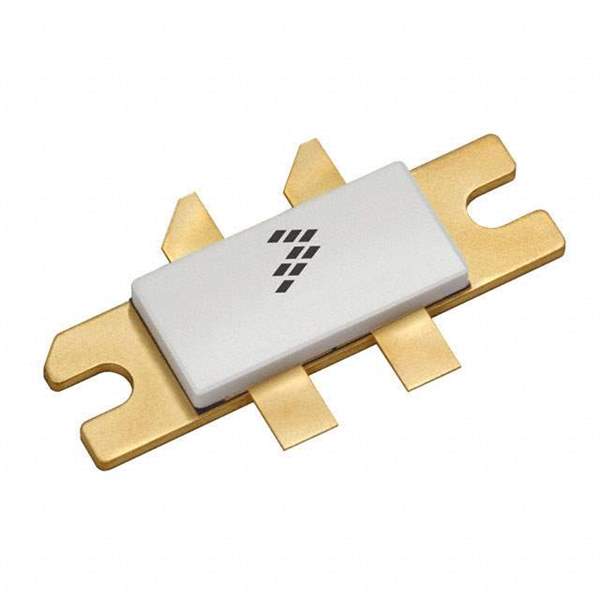

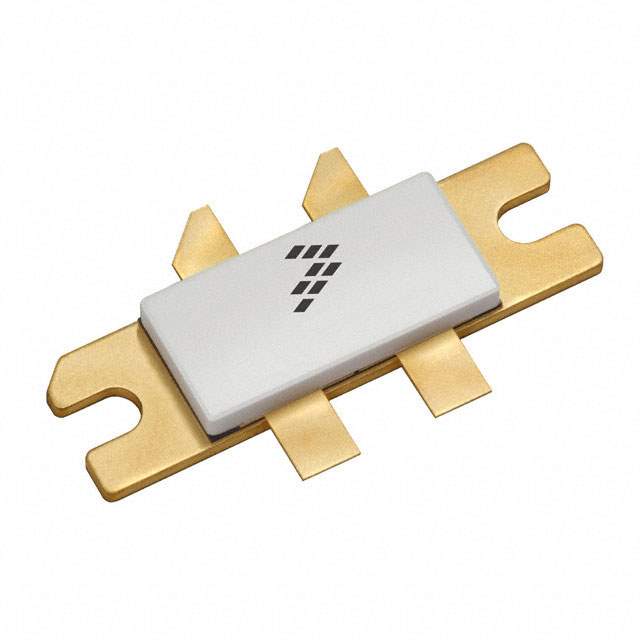

MRFE6VP6300HR5

Part No MRFE6VP6300HR5
Manufacturer NXP / Nexperia
Catalog Transistors - FETs, MOSFETs - RF
Description FET RF 2CH 130V 230MHZ NI780-4 / RF Mosfet LDMOS (Dual) 50 V 100 mA 230MHz 26.5dB 300W NI-780-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - RF
Mfr NXP USA Inc.
Package Tape & Reel
Transistor Type LDMOS (Dual)
Frequency 230MHz
Gain 26.5dB
Voltage - Test 50 V
Current - Test 100 mA
Power - Output 300W
Voltage - Rated 130 V
Package / Case NI-780-4
Supplier Device Package NI-780-4
Base Product Number MRFE6
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Names MRFE6VP6300HR5DKR,MRFE6VP6300HR5TR,MRFE6VP6300HR5CT,935317343178
Standard Package 50
Win Source Part Number 1021359-MRFE6VP6300HR5
Ultra Librarian 3D Model Ultra Librarian MRFE6VP6300HR5 CAD Model

Description

Product Overview: MRFE6VP6300HR5 by NXP Semiconductors

The MRFE6VP6300HR5 is a high-performance RF power LDMOS transistor designed and manufactured by NXP Semiconductors. This robust transistor is engineered to deliver exceptional power and efficiency, making it an ideal choice for a wide array of applications, including broadcast transmission, industrial, scientific, medical (ISM) applications, and RF energy solutions.

Key Features:

  • High Power: With an outstanding output of up to 300 Watts CW over a broad frequency range, this transistor is capable of handling high-power applications with ease.
  • Broadband Frequency Range: The MRFE6VP6300HR5 operates effectively across a wide frequency range from 1.8 to 600 MHz, ensuring versatility across different RF applications.
  • High Efficiency: Engineered for a high drain-source efficiency of up to 50%, this LDMOS transistor helps in reducing the overall power consumption and heat dissipation in systems where it is deployed.
  • Rugged Design: The transistor is designed to withstand a high voltage standing wave ratio (VSWR) of 65:1 at 50V, making it highly durable and reliable in demanding environments.
  • Integrated ESD Protection: It comes with built-in electrostatic discharge (ESD) protection, enhancing its resilience and longevity in the field.
  • Thermally Enhanced Package: Packaged in a high-performance ceramic design, the MRFE6VP6300HR5 ensures excellent thermal stability and conductivity.

Applications:

The versatility of the MRFE6VP6300HR5 allows it to be used in various applications that require high power and wideband capabilities. It is particularly suited for:

  • FM broadcast transmitters
  • VHF television transmitters
  • Industrial heating and plasma generation
  • Medical diagnostic equipment and treatments
  • Particle accelerators and fusion research

In conclusion, the MRFE6VP6300HR5 from NXP Semiconductors is a powerhouse transistor that offers the perfect blend of power, efficiency, and durability. Whether for commercial broadcast, industrial, or scientific applications, this LDMOS transistor is designed to meet the most demanding RF power requirements.
