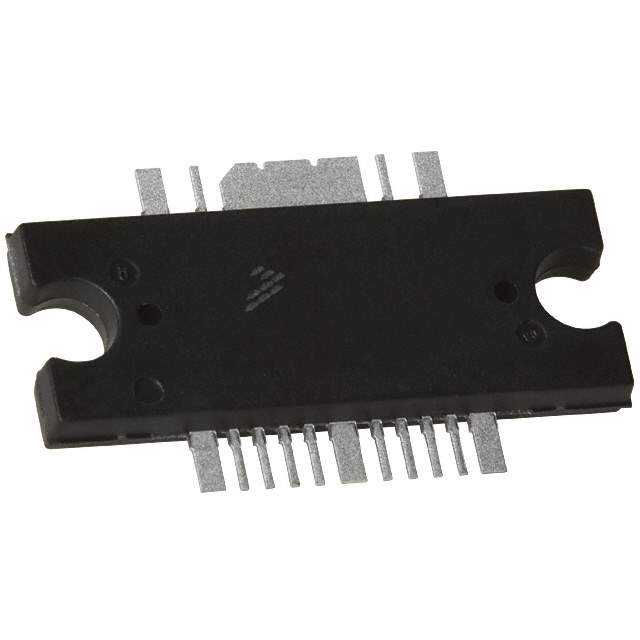

The NXP MW4IC2230MBR1 is a high-performance, wideband integrated circuit designed for RF power amplifiers in commercial communication systems. This product is part of NXP's extensive RF portfolio, which is renowned for providing reliable and efficient solutions for RF power amplification needs.

Key Features

• Frequency Range: The MW4IC2230MBR1 operates over a broad frequency range, making it suitable for a variety of applications including cellular, PCS, WCDMA, and LTE bands.
• High Gain: It offers a high gain, which ensures that the signal is amplified significantly without the need for additional stages.
• Efficiency: The device is designed for high efficiency, which minimizes power loss and heat dissipation, thereby improving the overall performance of the system.
• Integrated Matching: With its integrated input and output matching network, the MW4IC2230MBR1 simplifies PCB layout and reduces the number of external components required.
• Durability: Constructed to withstand the rigors of commercial communication environments, the MW4IC2230MBR1 is built for durability and consistent performance.

Applications

The MW4IC2230MBR1 is ideal for use in a range of communication applications. Its versatility allows it to be used in:

• Base station transceivers for cellular and PCS systems
• Repeaters and booster amplifiers
• General-purpose RF power amplification

Technical Specifications

Some of the technical specifications of the MW4IC2230MBR1 include:

• Output Power: 30 W CW
• Operating Voltage: 28 V
• Overall Efficiency: >30%
• Thermal Resistance: 0.95°C/W
• Package: Over-molded plastic

Quality and Support

NXP is committed to providing high-quality products and offers comprehensive technical support for the MW4IC2230MBR1. With NXP's reputation for excellence in the RF field, customers can expect reliable performance and durability from this RF amplifier.
