The NXP MW7IC2020NT1 is a high-performance RF power transistor designed to meet the rigorous demands of modern wireless communication systems. This device is part of NXP's advanced line of RF power transistors that offer excellent performance in terms of power, efficiency, and reliability.

Key Features

• Frequency Range: The MW7IC2020NT1 operates within the 1805 to 1990 MHz frequency range, making it ideal for applications in the cellular frequency bands such as GSM, CDMA, and LTE.
• High Output Power: It is capable of delivering a high output power of 20W, ensuring strong signal transmission for base station applications.
• High Gain: With a high gain of 15 dB, this transistor amplifies RF signals effectively, resulting in improved system performance.
• High Efficiency: It boasts an efficiency of 35%, which helps in reducing the power consumption and heat generation in the system.
• Integrated ESD Protection: The MW7IC2020NT1 comes with integrated ESD protection, enhancing the durability of the device by safeguarding it against unexpected electrical surges.
• Rugged Design: The transistor is designed to withstand a load mismatch of 10:1 through all phases of production, making it a robust choice for challenging environments.

Applications

The MW7IC2020NT1 is primarily used in RF power amplifiers for cellular base station applications. Its high power and efficiency make it suitable for various wireless communication systems, including:

• 2G, 3G, and 4G cellular systems
• Multi-carrier or single-carrier systems
• CDMA, WCDMA, GSM, EDGE, and LTE technologies

Package and Quality

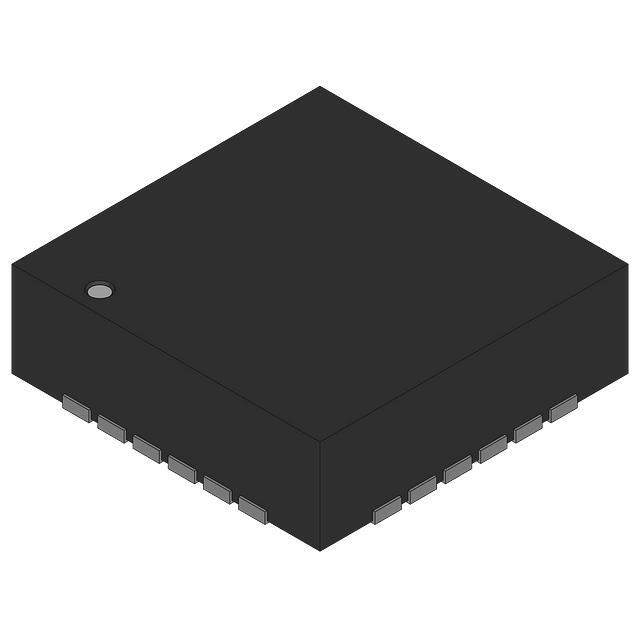

The device is housed in an over-molded plastic package that ensures its robustness and reliability. The package is designed for optimal thermal performance and is compatible with a variety of PCB technologies. NXP's commitment to quality means that the MW7IC2020NT1 is manufactured to the highest standards, ensuring consistent performance and longevity in the field.
