The NXP PCA9515D+112 is a robust I²C bus extender integrated circuit designed to provide reliable two-way communication for applications requiring extended signal transmission distances. This innovative device facilitates the connection of an I²C bus to distant peripherals within embedded systems, ensuring signal integrity and system functionality across longer stretches of communication lines.

Key Features

• Hot-Swappable: The PCA9515D+112 allows for devices to be inserted into or removed from a live backplane without causing disruption to the bus communication, making it ideal for systems that require maintenance or upgrades without power-down.
• Extended Signal Range: By buffering both the data (SDA) and the clock (SCL) lines, the device enables the I²C bus to span over greater distances, overcoming the limitations set by standard I²C bus capacitance.
• Operating Voltage: It operates across a wide range of voltages, from 2.3V to 3.6V, providing versatility in various applications and compatibility with low-voltage systems.
• No Oscillator Required: Unlike other bus extenders, the PCA9515D+112 does not require an external oscillator, simplifying the design and reducing the overall component count.
• Low Standby Current: It features a low standby current, which is essential for battery-powered devices where power conservation is critical.

Applications

The PCA9515D+112 is suitable for a wide range of applications, including but not limited to:

• Industrial control systems
• Server motherboards
• Telecommunication systems
• Medical equipment
• Automotive infotainment systems

Technical Specifications

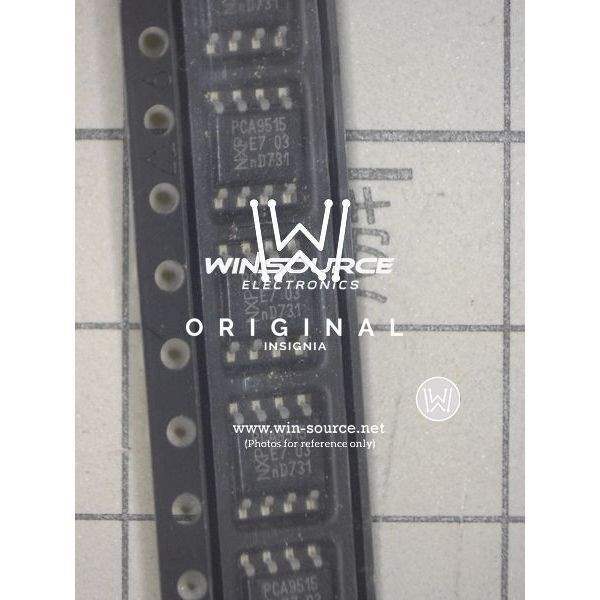

• Package: The device is available in an SOIC-8 package, ensuring compactness and ease of integration into existing designs.
• Temperature Range: It is designed to operate within an industrial temperature range from -40°C to +85°C, making it suitable for harsh environments.
• Compliance: The PCA9515D+112 is fully compliant with the I²C-bus specification and user manual.

In conclusion, the NXP PCA9515D+112 offers a practical and efficient solution for extending I²C bus communications, ensuring both flexibility and reliability in a variety of advanced electronic systems.
