Product Overview: PCA9635PW from NXP Semiconductors

The PCA9635PW is a sophisticated LED driver manufactured by NXP Semiconductors, designed to provide flexible and efficient control over LED illumination systems. This component is part of the PCA96xx family, which is renowned for its programmable LED drivers with an I²C-bus interface, making it an ideal solution for advanced lighting applications.

Key Features

• 16 LED Drivers: Each of the 16 LED output channels can be individually controlled, allowing for precise and varied lighting schemes.
• I²C Interface: The PCA9635PW comes with an I²C-bus interface that supports up to 1 MHz fast-mode plus, providing quick and efficient communication with microcontrollers or other I²C compatible devices.
• Programmable PWM Outputs: The device offers fully programmable PWM outputs with a 97 Hz to 1526 Hz range, enabling dynamic control over LED brightness and color mixing for sophisticated lighting effects.
• Group Dimming and Blinking: It also supports group dimming/blinking that can be programmed to operate simultaneously or asynchronously, offering additional flexibility in lighting design.
• Output Current: Each output can sink up to 25 mA, with the possibility of paralleling outputs to increase the current for driving higher power LEDs.
• Voltage Range: The PCA9635PW operates within a supply voltage range of 2.3 V to 5.5 V, accommodating various power sources and system requirements.

Applications

The PCA9635PW is versatile and can be used in a range of applications, including:

• RGB or RGBA LED drivers
• Backlighting LCD displays
• Status indicators
• Home and smart lighting systems
• Commercial lighting displays

Package Information

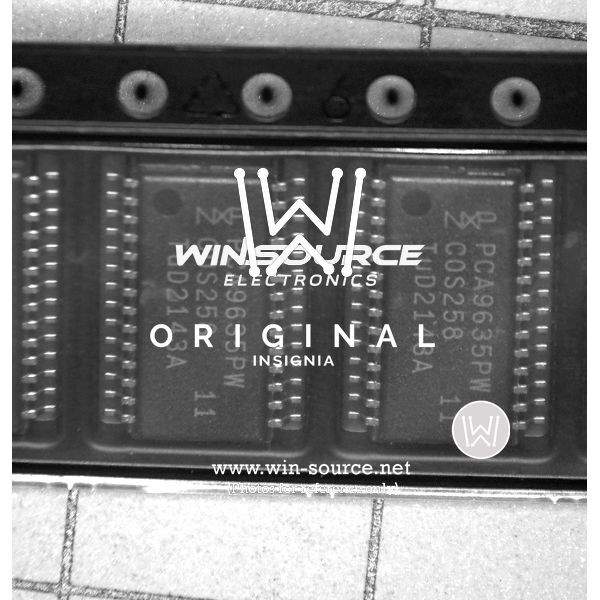

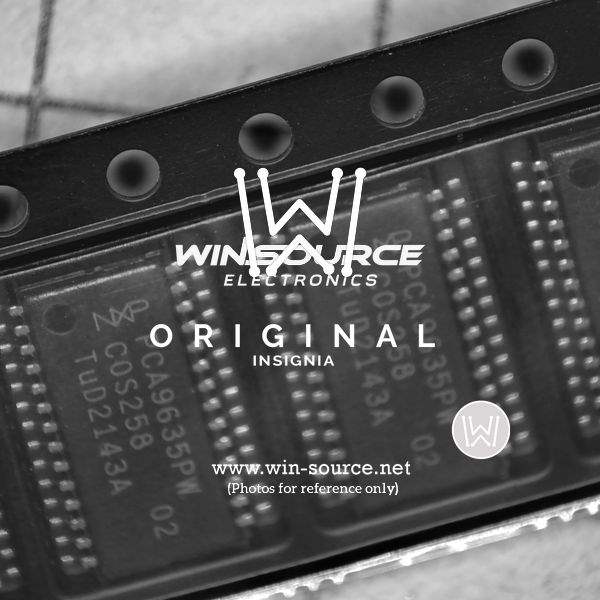

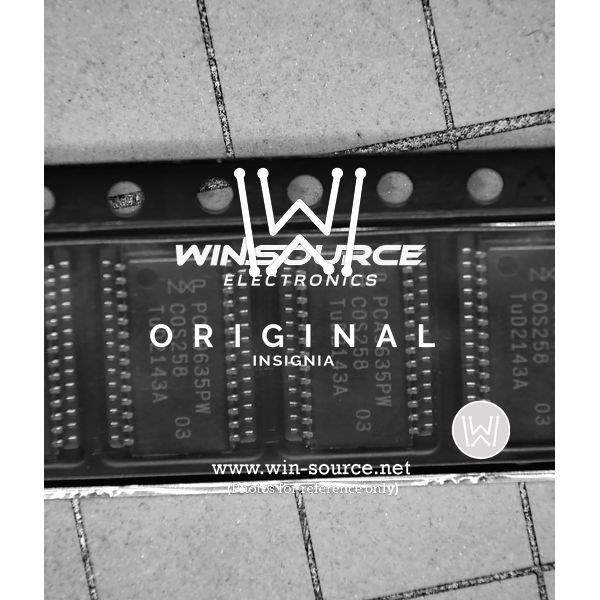

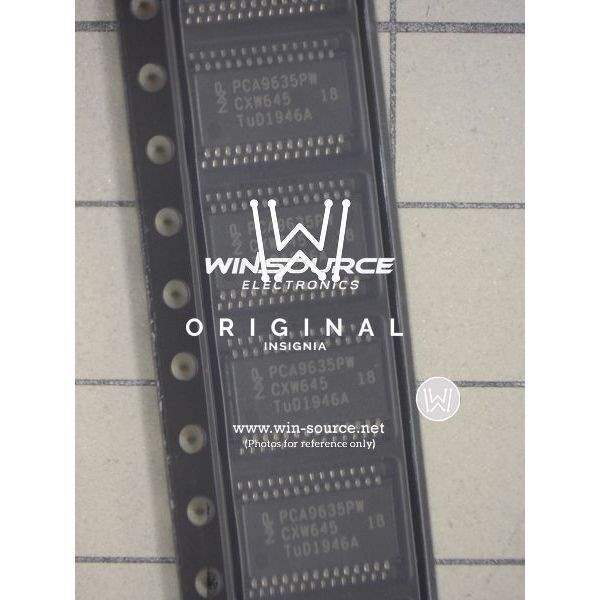

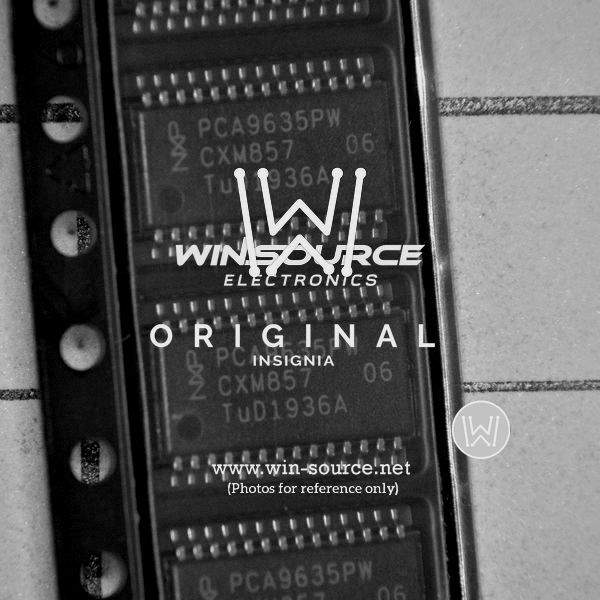

The device is offered in a TSSOP28 (thin shrink small outline package) which is a space-saving package. The PCA9635PW's package is designed for surface-mounted technology, which makes it suitable for compact PCB designs and automated manufacturing processes.

Conclusion

In conclusion, the PCA9635PW from NXP Semiconductors is a powerful and versatile LED driver that can cater to a wide array of lighting needs. Its combination of individual channel control, programmable PWM, group dimming capabilities, and an efficient I²C interface, all within a compact package, makes it an excellent choice for designers looking to create advanced, energy-efficient lighting solutions.
