NXP PH8030L High Power MOSFET

The NXP PH8030L is a robust high power N-channel enhancement-mode Field Effect Transistor (FET) designed for a variety of applications that require efficient power management and high switching performance. This MOSFET is part of NXP's leading-edge portfolio of high-performance transistors that are engineered to meet the stringent requirements of modern electronic designs.

Key Features

• Low On-State Resistance: The PH8030L features a very low on-state resistance (R<sub>DS(on)), which minimizes conduction losses and improves overall efficiency, making it suitable for high-efficiency power supplies and DC-DC converters.
• High-Speed Switching: With fast switching capabilities, the PH8030L is ideal for applications that require quick transitions, such as motor control circuits and power management systems.

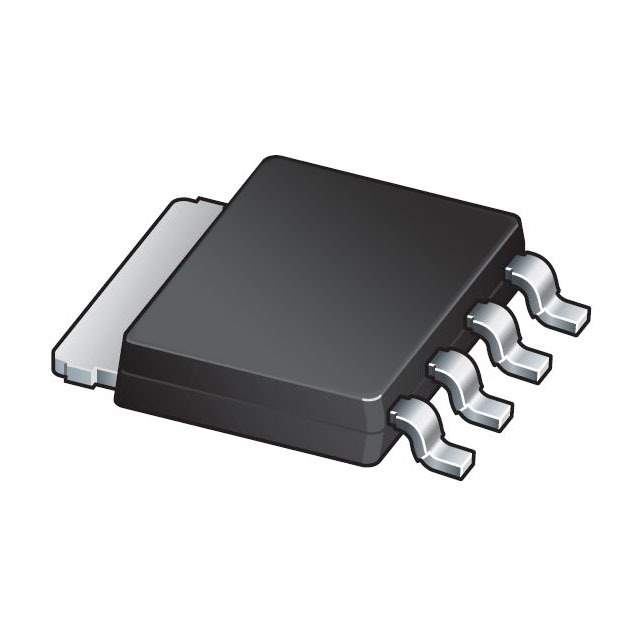

• High Thermal Performance: The MOSFET is housed in a robust package that offers excellent thermal performance, ensuring reliability even under high power and temperature conditions.
• Logic Level Compatible: Designed to work with logic-level gate drive voltages, this MOSFET can be easily interfaced with microcontrollers and other logic devices, simplifying circuit design.

Applications

The PH8030L is versatile and can be used in a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Systems
• Power Management Circuits
• LED Lighting Systems
• Automotive Electronics

Technical Specifications

Some of the technical specifications of the PH8030L include:

• Drain-source voltage (V<sub>DSS): 30V
• Continuous drain current (I<sub>D): 100A
• Power dissipation (P<sub>D): 156W
• Operating temperature range: -55°C to +175°C

With its combination of low on-state resistance, high-speed switching, and high thermal performance, the NXP PH8030L MOSFET stands out as a superior choice for designers looking to optimize power efficiency and reliability in their electronic projects.
