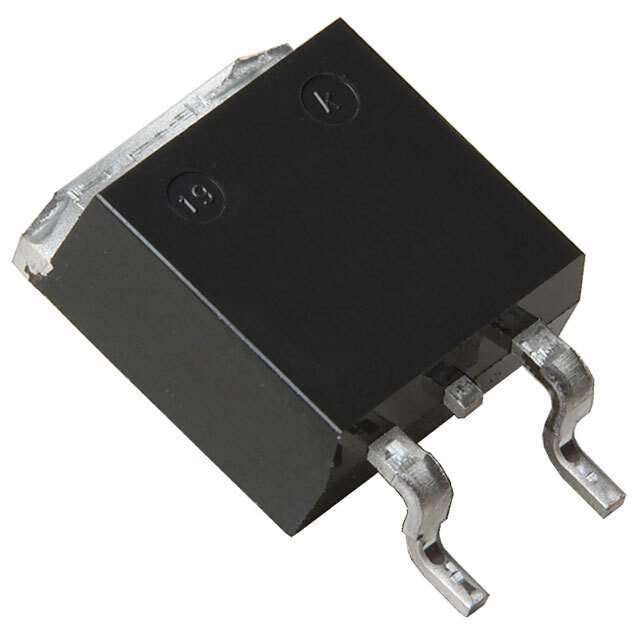

PHB222NQ04LT

Part No PHB222NQ04LT
Manufacturer NXP / Nexperia
Catalog Transistors - FETs, MOSFETs - RF
Description N-channel TrenchMOSTM logic level FET
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

RoHS State Request Verification
Manufacturer NXP
Win Source Part Number 1237228-PHB222NQ04LT
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PHB222NQ04LT CAD Model

Description

The PHB222NQ04LT is a cutting-edge, high-performance, N-channel TrenchMOS™ logic level FET designed and manufactured by NXP Semiconductors, a leader in the field of advanced semiconductor solutions. This product is engineered to deliver exceptional efficiency and power handling capabilities, making it an ideal choice for a wide range of applications, including automotive, computing, power management, and industrial systems.

Key Features

  • Device Type: N-channel, logic level, enhancement mode field-effect transistor (FET).
  • Package: The PHB222NQ04LT comes in a D2PAK configuration, known for its robustness and high power dissipation.
  • Drain-Source Voltage (V<sub>DS): Rated for a maximum drain-source voltage of 40V, providing a broad operating range for various circuit designs.
  • Continuous Drain Current (I<sub>D): It boasts a high continuous drain current of up to 75A at 25°C, enabling it to handle significant power levels.
  • Low On-Resistance (R<sub>DS(on)): Features an extremely low on-state resistance of 4.5 mΩ at a gate-source voltage of 10V, minimizing conduction losses.
  • Gate-Source Voltage (V<sub>GS): Supports a ±20V gate-source voltage, offering flexibility in gate drive design.
  • Logic Level Compatible: Its logic level gate drive makes it compatible with 5V logic signals, simplifying the interface with microcontrollers and other logic devices.
  • Fast Switching Speed: Designed for fast switching, this component improves performance in high-frequency applications.
  • Temperature Range: Operates effectively within a broad temperature range from -55°C to +175°C, ensuring reliability under various environmental conditions.

Applications

The PHB222NQ04LT's robustness and efficiency make it suitable for various applications, including but not limited to:

  • DC/DC converters and power management circuits.
  • Motor drives and controllers in automotive and industrial settings.
  • Switch-mode power supplies (SMPS).
  • Power distribution systems.
  • Load switches and battery management systems.

With its impressive specifications and NXP's reputation for reliability, the PHB222NQ04LT is an excellent choice for designers looking to optimize their power circuitry with a high-performance, logic level MOSFET.
