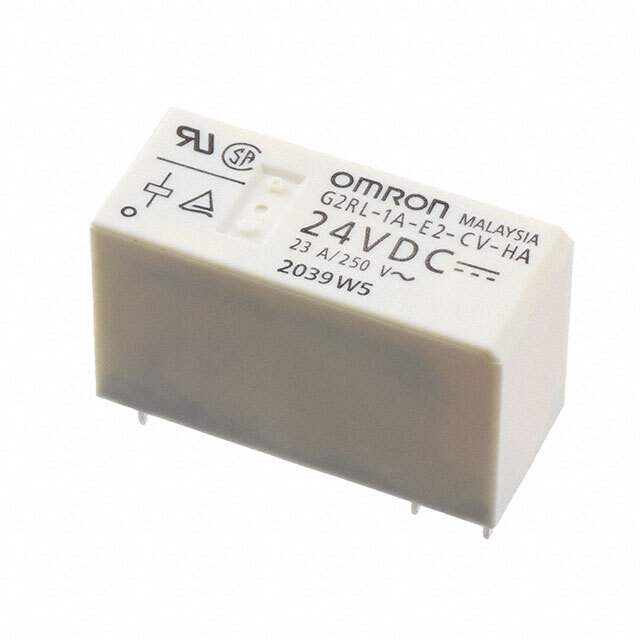

Same model may have multiple batches, images only for reference.
G2RL-1A-E2-CV-HA DC24 Omron Electronics Inc-EMC Div
Same model may have multiple batches, images only for reference.

G2RL-1A-E2-CV-HA DC24

Part No G2RL-1A-E2-CV-HA DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 23A 24V
Datasheet
G2RL-1A-E2-CV-HA DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays >Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Packaging  Tray
Part Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 23 A
Switching Voltage 250VAC - Max
Load - Max Switching 5750VA
Ultra Librarian 3D Model Ultra Librarian G2RL-1A-E2-CV-HA DC24 CAD Model

Description

  • High current 23 A switching surpassing standard G2RL models.
  • Meets ambient operating temperature requirements of 105°C
  • Low profile; 16.7 mm max. in height.
  • Reinforced insulation between coil and contact with 10 kV Impulse voltage.
  • Conforms to EN60335-1 of Safety of Household appliances.
  • Clearance and creepage distances: 8 mm / 8 mm min.
  • Coil insulation system: Class F (UL1446)
