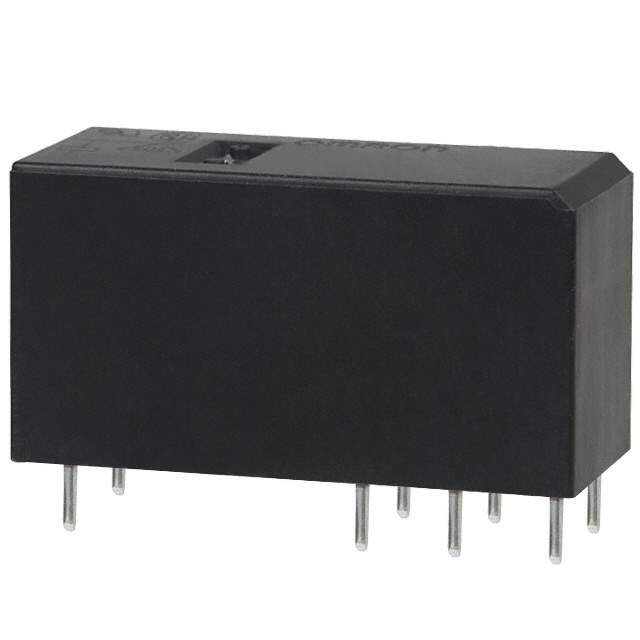

The G2RL-24 DC5 is a single-pole, double-throw (SPDT) power relay manufactured by Omron. It's designed for switching moderate to high current loads in a variety of applications. The DC5 designation indicates that the relay coil operates on a 5VDC supply.

Applications:

• Industrial Control Systems
• Power Supplies
• HVAC Systems
• Security Systems
• Automotive Applications

Features:

• SPDT Contact Arrangement
• 5VDC Coil Voltage
• High Switching Capacity
• High Dielectric Strength
• RoHS Compliant

Benefits:

• Versatile Switching Capability
• Easy Integration with 5V Logic Circuits
• Reliable Performance
• Safe Operation
• Environmentally Friendly

Specifications:

The G2RL-24 DC5 features a contact rating of up to 10A at 250VAC or 30VDC (resistive load). Its coil voltage is 5VDC, and the coil resistance is specified to ensure proper operation at the rated voltage. The relay provides a high dielectric strength between the coil and contacts, ensuring safe isolation. It is designed to meet industry standards for safety and performance and is RoHS compliant, meaning it doesn't contain hazardous substances. The SPDT contact arrangement provides flexibility in switching circuits, allowing the relay to be used in a variety of configurations. The relay is commonly used for general purpose switching.
