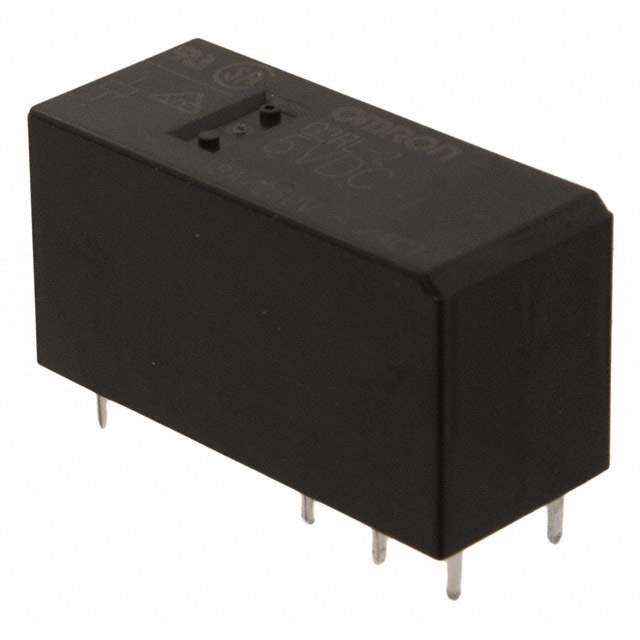

The Omron G2RL25DC is a general-purpose non-latching relay that has 8 pins.

• Type: General-Purpose, Non-Latching
• Pins: 8
• Termination: PC Pin
• Mounting: SMD (SMT)
• Contact Material: Cadmium with Silver Plating
• Length: 29 mm
• Coil Resistance: 62.5 Ω
• Coil Current: 80 mA
• Contact Current Rating: 8 A
• Operate Time: 15 ms
• Throw Configuration: DPDT
• Coil Voltage (DC): 5 V
• Maximum Operating Temperature: 85°C
• Minimum Operating Temperature: -40°C
• Voltage Rating (AC): 440 V
• Voltage Rating (DC): 300 V
• RoHS Compliant: Yes
• ECCN: EAR99
• HTSUS: 8536.49.0000
• Other Part Numbers: G2RL-24 DC5, G2RL-2 DC5, RTE24005F, 6-1393243-1, RTE24006F, G2RL24 5DC BY OMBG2RL-2 5DC, G2RL-2-5DC, G2RL-25DC, G2RL2 5DC, G2RL2 5DC., and G2RL2-5DC
