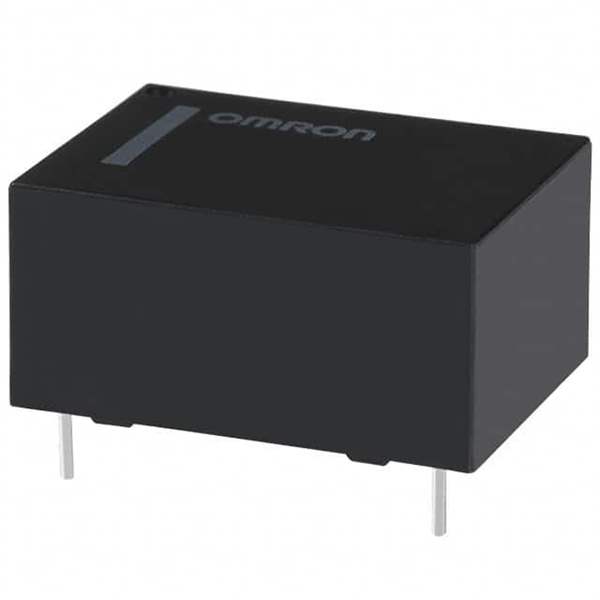

G5CA-1A-E DC24 Omron
Same model may have multiple batches, images only for reference.

G5CA-1A-E DC24

Part No G5CA-1A-E DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5CA
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G5CA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1315314-G5CA-1A-E DC24
Ultra Librarian 3D Model Ultra Librarian G5CA-1A-E DC24 CAD Model

Description

The Omron Electronics Inc-EMC Div G5CA is a general-purpose relay, ideal for applications requiring a high switching capacity.

  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 15 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Switching Voltage: 250VAC and 125VDC (max)
  • Seal: Flux Protection
  • Operating Temperature Range: -25°C to 70°C
